Galaxy DX Radios DX949
Documentation Project

CBTricks.com

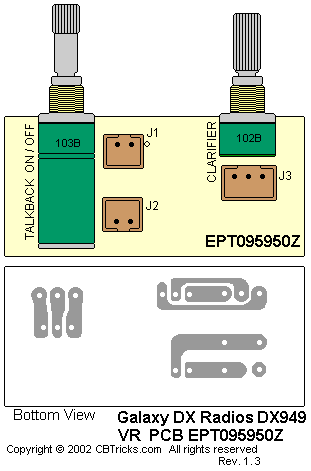

VR P.C.B. (EPT095950Z)



Ref. No.
Description
MFR. Part No.
  VR P.C.B. 44x20x1.6tmm
EPT095950Z


VR P.C.B. Complete with Components

#MT-145F-P02



Ref. No.
Description
MFR. Part No.

J1

PCB CONNECTOR/S 2P PH=2MM

EX07N48223

J2

PCB CONNECTOR/S 2P PH=2MM

EX07N48223

J3

PCB CONNETOR/S 3P PH=2MM

EX07N48350



Ref. No.
Description
MFR. Part No.

TALKBACK

10KB/PUSHSW L=20mm

RV10303543

CLARIFIER

VR 1KB

RV10203528
