Galaxy
DX Radios DX949
Documentation Project
CBTricks.com

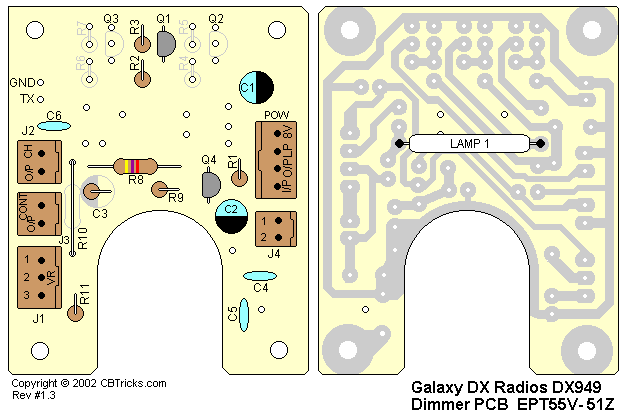

Dimmer P.C.B. (EPT055V51Z)
Trace
Layout
|
Ref.
No.
|
Description |
MFR.
Part No.
|
| Dimmer P.C.B. |
EPT055V51Z
|
|
|
|
Dimmer P.C.B. Complete with Components |
#MT-145F-P06 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
R1 |
C/F/R 39 OHM 1/4W U |
RCU143904Z |
|
R2 |
C/F/R 10K OHM 1/4W U |
RCU141034Z |
|
R3 |
C/F/R 4.7K OHM 1/4W U |
RCU144724Z |
|
R8 |
C/F/R 4.7K OHM 1/4W M |
RCM144724B |
|
R9 |
C/F/R 39K OHM 1/16W U |
RCU163934Z |
|
R11 |
C/F/R 6.8K OHM 1/16W P |
RCP166824Z |
|
C3 |
C/F/R 1K OHM 1/4W U |
RCU141024Z |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
C1 |
E/C 47UF 16WV Z |
CE0164767Z |
|
C2 |
E/C 10UF 25WV Z |
CE0251067Z |
|
C4 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C5 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C6 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
Q1 |
T/R 2SC945P |
T2SC00945P |
|
Q4 |
T/R 2SC945P |
T2SC00945P |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 3P T |
EX07N41216 |
|
J2 |
PCB CONNECTOR/S 2P T |
EX07N41226 |
|
J3 |
PCB CONNECTOR/S 2P T |
EX07N41226 |
|
J4 |
PCB CONNECTOR/S 2P T |
EX07N41226 |
|
POW |
PCB CONNECTOR/S 4P T |
EX07N41250 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
|
LAMP 0.05 12V |
EX02N40230 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
R10 |
JUMPER WIRE 7x12x7 |
WX01070712 |
