Galaxy DX Radios DX949
Documentation Project
CBTricks.com
Frequency Conversion

1.
 Remove bottom cover from radio.
2.

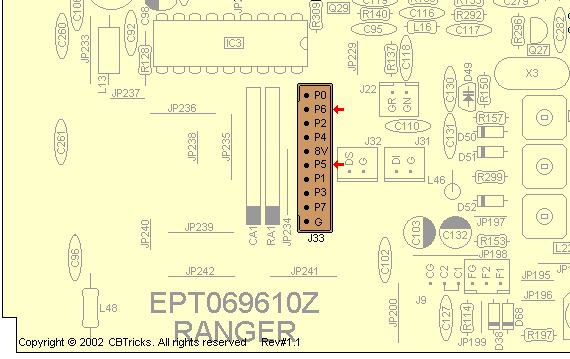

 On the main PCB, locate J33. (See diagram above)
3.
 Locate wires on pins marked "P5" (yellow) & "P6" (grey).
4.
 Cut wire on "P5" (yellow) and install a SPST switch in line.
5.
 Cut wire on "P6" (grey) and install a SPST switch in line.
NOTE:
 By using two of the function switches available on the radio will eliminate the need for two new switches to be installed and mounted.
