Galaxy DX Radios DX94HP
Documentation Project

CBTricks.com

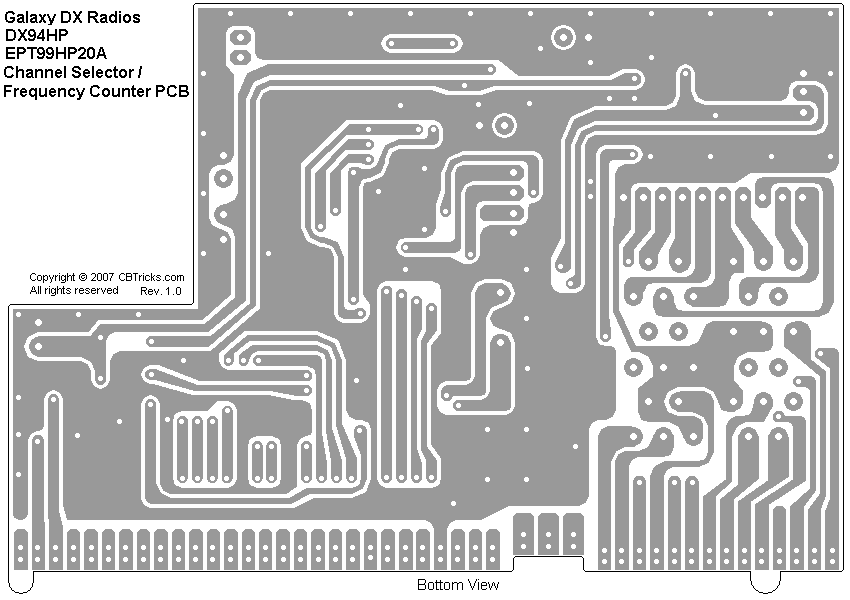

Channel Selector / Frequency Counter PCB (EPT99HP20A)
Trace Layout Bottom View


Copyright © 2007 CBTricks.com
