Galaxy
DX Radios DX94HP
Documentation Project
CBTricks.com

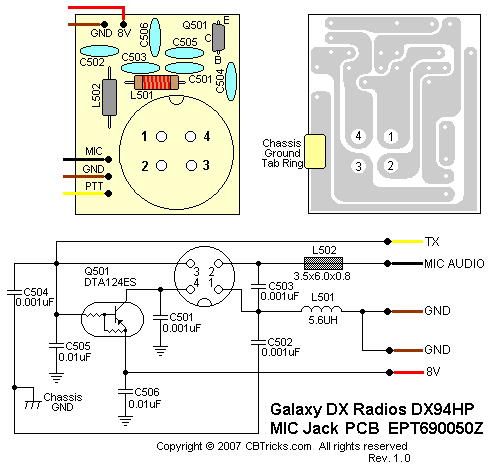

MIC Jack PCB (EPT690050Z)
|
Ref#
|
Description |
MFR.
Part No.
|
|
MIC JACK PCB EPT690050Z |
#T-141L-P04 |
|
|
EPT690050Z |
EPT690050Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C501 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
|
C502 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
|
C503 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
|
C504 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
|
C505 |
0.01UF 50WV SL Z |
CC0501037L |
|
C506 |
0.01UF 50WV SL Z |
CC0501037L |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q501 |
T/R DTA124ES |
TDTA0124ES |
Inductors
|
Ref#
|
Description |
MFR.
Part No.
|
|
L501 |
CHOKE COIL 5.6UH |
ECCHK16001 |
|
L502 |
BEAD COIL WBRH-3.5x6x0.8-U10 |
ECBAD18526 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
MIC JACK SCS 16 4(R) |
EX06N41020 |
|
Ref#
|
Description |
MFR.
Part No.
|
|
MIC-50J(J2) |
WIRE CONNECTOR/H #28L=140 PH=2.5 |
EX07N48903 |
|
MIC-MAIN(J26) |
WIRE CONNECTOR/H 2P L=100 PH=2 #28 |
EX07N48233 |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
SOLDER PLATE L=35mm |
XZZZ90423Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
