Galaxy
DX Radios DX94HP
Documentation Project
CBTricks.com

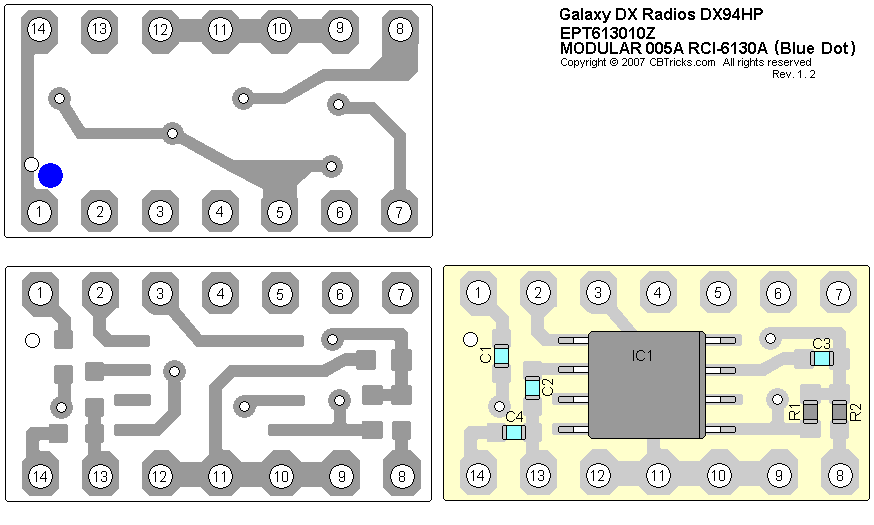

MODULAR
005A RCI-6130A (EPT613010Z)
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
MODULAR 005A RCI-6130A |
#F-005A |
|
|
RCI-6130 PCB 18x10x1.0tmm(S) |
EPT613010Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R1 |
CHIP/F/R (SMD) 22K OHM |
RCY062234Z |
|
R2 |
CHIP/F/R (SMD) 22K OHM |
RCY062234Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C1 |
CHIP/C 0.001UF 50WV K X7R |
CK1102AD5X |
|
C3 |
CHIP/C 0.001UF 50WV K X7R |
CK1102AD5X |
|
C2 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
|
C4 |
CHIP/C 100PF 50WV K CH |
CK1101AD5A |
Integrated Circuits
|
Ref#
|
Description |
MFR.
Part No.
|
|
IC1 |
I.C. (PHILIPS) (SMD) SA602A 8PIN |
YNPH00602A |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
IC PIN 049 |
GZZZ50207Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
