Clarifier Range Increase Update
(For Radios made before 2004)

This update is for early production Radios all radios made 2004 0n will have this already done.



To Increase Clarifier Range:

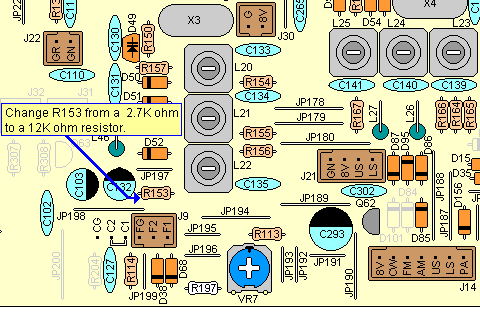

Locate resistor R153 on the main pc board (grid location G3). It is right next to connector J9 on the front edge of the main pc board and towards the channel selector. Resistor R153 is a 2.7K ohm and can be change to a 12K ohm resistor for more clarifier range. This will give you about 1.2KHz both up and down. After doing this update perform an PLL alignment as shown below.



AM Frequency:
Set radio to CH 1 AM RX mode.
Clarifier control to center detent.
Connect frequency counter to TP3.
L20
16.27000 MHz ± 20 Hz
USB Freq:
Set radio to CH 1 USB mode.
Clarifier control to center detent.
Connect frequency counter to TP3.

L21

16.27250 MHz ± 20 Hz

LSB Freq:
Set radio to CH 1 LSB mode.
Clarifier control to center detent.
Connect frequency counter to TP3.
L22
16.26750 MHz ± 20 Hz
