Galaxy DX Radios DX959
Documentation Project

CBTricks.com

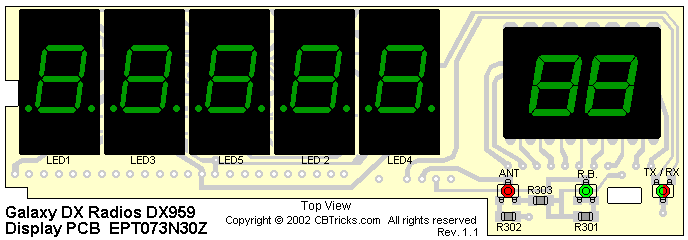

DISPLAY P.C.B. (EPT073N30Z)
Trace Layout





Ref. No.
Description
MFR. Part No.


DISPLAY P.C.B. 83x28x1.6tmm(d)

EPT073N30Z



DISPLAY PCB. Complete with Components

#MT-145G-P04



Ref. No.
Description
MFR. Part No.

R325

CHIP/F/R (SMD) 1K OHM 0.1W

RCY011024Z

R327

CHIP/F/R (SMD) 1K OHM 0.1W

RCY011024Z



Ref. No.
Description
MFR. Part No.

ANT

LED (SMD) RED 4V/25mA

EX01Y40116

R.B

LED LAMPS (SMD) KM-23SGC

EX01Y40117

T/R

LED LAMPS (SMD) KM-23ESGC

EX01Y40114

CH

LED DISPLAY GREEN L=15mm

EX03N40483

FREQ.

LED DISPLAY LSD3922 (GREEN)

EX03N40485
