Galaxy
DX Radios DX959
Documentation Project
CBTricks.com

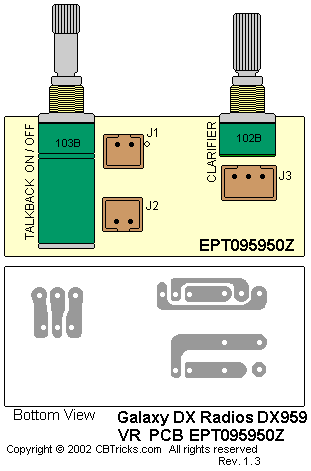

VR P.C.B. (EPT095950Z)
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
|
VR P.C.B.44x20x1.6tmm(S) |
EPT095950Z |
|
|
VR P.C.B. Complete with Components |
#MT-145F-P02 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
TALKBACK |
TALKBACK/PUSH SW 10KB/PUSH/SW L=20mm |
RV10303543 |
|
CLARIFIER |
VR 1KB |
RV10203528 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J2 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J3 |
PCB CONNETOR/S 3P PH=2MM |
EX07N48350 |
