Galaxy
DX Radios DX959
Documentation Project
CBTricks.com

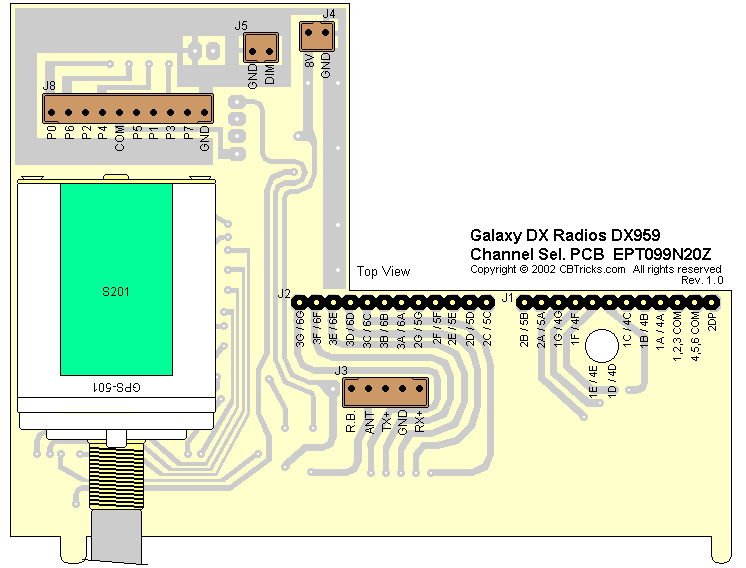

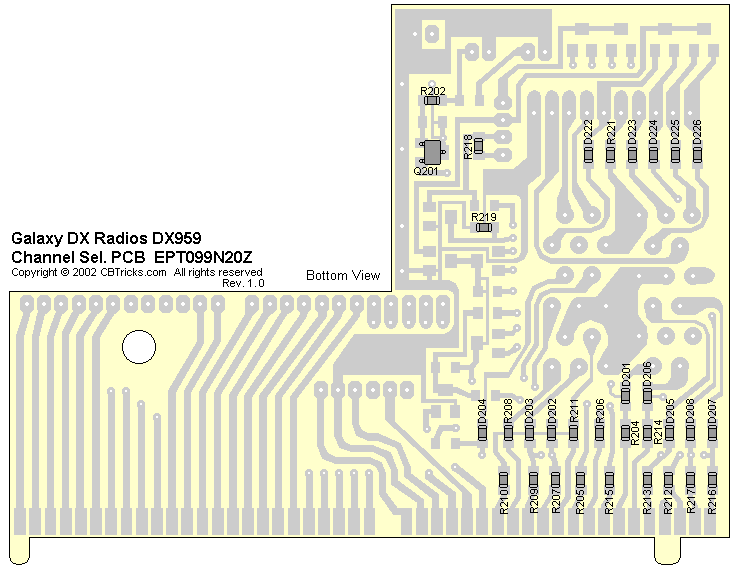

Channel Selector P.C.B.
(EPT099N20Z)
Trace
Layout
Ref.
No.
|
Description |
MFR.
Part No.
|
|
Channel Selector PCB 82x65x1.6tmm(d) |
EPT099N20Z |
|
Channel Selector PCB Complete with Components |
#MT-142H-P02 |
Ref.
No.
|
Description |
MFR.
Part No.
|
R202 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R204 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R205 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R206 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R207 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R208 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R209 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R210 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R211 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R212 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R213 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R214 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R215 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R216 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R217 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R218
|
CHIP/F/R (SMD) 100K ohm 0.1W |
RCY011044Z
|
R219 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R221 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
Ref.
No.
|
Description |
MFR.
Part No.
|
D201 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D202 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D203 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D204 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D205 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D206 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D207 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D208 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D222 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D223 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D224 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D225 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
D226 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
Ref.
No.
|
Description |
MFR.
Part No.
|
Q201 |
T/R(SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Ref.
No.
|
Description |
MFR.
Part No.
|
J1 |
PCB CONNECTOR/S 12P |
EX07N48928 |
J2 |
PCB CONNECTOR/S 12P |
EX07N48928 |
J3 |
PCB CONNECTOR/S 5P PH=2MM |
EX07N48222 |
J4 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J5 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J8 |
PCB CONNECTOR/S 10P |
EX07N48209 |
Ref.
No.
|
Description |
MFR.
Part No.
|
S201 |
ROTARY SW GPS-0501 |
EWRT32000S |
