Galaxy
DX Radios DX959
Documentation Project
CBTricks.com

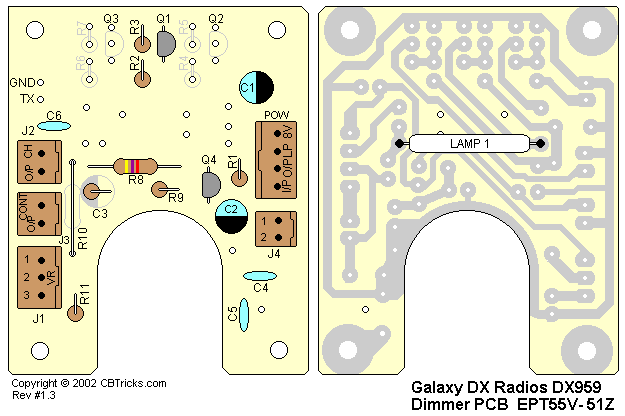

Dimmer P.C.B. (EPT055V51Z)
Trace
Layout
Ref.
No.
|
Description |
MFR.
Part No.
|
|
Dimmer P.C.B. |
EPT055V51Z
|
|
Dimmer P.C.B. Complete with Components |
#MT-145G-P06 |
Ref.
No.
|
Description |
MFR.
Part No.
|
R1 |
C/F/R 39 OHM 1/4W U |
RCU143904Z |
R2 |
C/F/R 10K OHM 1/4W U |
RCU141034Z |
R3 |
C/F/R 4.7K OHM 1/4W U |
RCU144724Z |
R8 |
C/F/R 4.7K OHM 1/4W M |
RCM144724B |
R9 |
C/F/R 39K OHM 1/4W U |
RCU143934Z |
R11 |
C/F/R 5.6K OHM 1/4W U |
RCU145624Z |
C3 |
C/F/R 1K OHM 1/4W U |
RCU141024Z |
Ref.
No.
|
Description |
MFR.
Part No.
|
C1 |
E/C 47UF 16WV Z |
CE0164767Z |
C2 |
E/C 10UF 25WV Z |
CE0251067Z |
C4 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
C5 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
C6 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
Ref.
No.
|
Description |
MFR.
Part No.
|
Q1 |
T/R 2SC945P |
T2SC00945P |
Q4 |
T/R 2SC945P |
T2SC00945P |
Ref.
No.
|
Description |
MFR.
Part No.
|
J1 |
PCB CONNECTOR/S 3P T |
EX07N41216 |
J2 |
PCB CONNECTOR/S 2P T |
EX07N41226 |
J4 |
PCB CONNECTOR/S 2P T |
EX07N41226 |
POW |
PCB CONNECTOR/S 4P T |
EX07N41250 |
Ref.
No.
|
Description |
MFR.
Part No.
|
|
LAMP 0.05 12V |
EX02N40230 |
Ref.
No.
|
Description |
MFR.
Part No.
|
R10 |
JUMPER WIRE 7x12x7 |
WX01070712 |
Ref.
No.
|
Description |
MFR.
Part No.
|
DIMMER PCB |
SET SCREW M2.6x0.45Px4 (4) |
JS052604MN |
