Galaxy
DX Radios DX959
Documentation Project
CBTricks.com

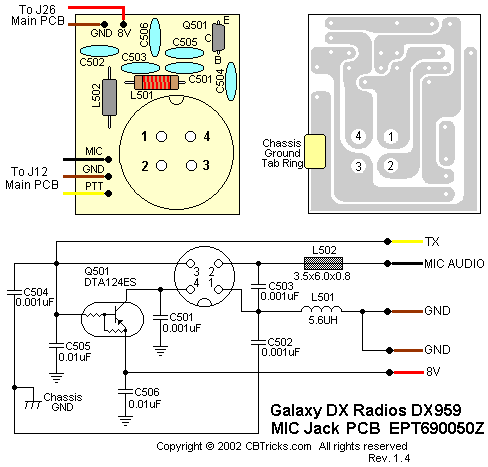

MIC P.C.B. EPT690050Z
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
|
MIC P.C.B. 33.5x27x1. 6tmm(S) |
EPT690050Z |
|
|
MIC P.C.B. Complete with Components |
#MT-142A-P02 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
C501 |
C/C 0.001UF 50WV SL Z |
CC0501027L+ |
|
C502 |
C/C 0.001UF 50WV SL Z |
CC0501027L+ |
|
C503 |
C/C 0.001UF 50WV SL Z |
CC0501027L+ |
|
C504 |
C/C 0.001UF 50WV SL Z |
CC0501027L+ |
|
C505 |
C/C 0.01UF 50W V SL Z |
CC0501037L |
|
C506 |
C/C 0.01UF 50W V SL Z |
CC0501037L |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
Q501 |
T/R DTA124ES |
TDTA0124ES |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
L501 |
CHOKE COIL 5.6UH |
ECCHK16001 |
|
L502 |
BEAD COIL 3.5x6x1.2 |
ECBAD18526 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
|
MIC JACK SCS-16-4(R) |
EX06N41020 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
MIC-MAIN(J12) |
WIRE CONNECTOR/H 3P L=140MM |
EX07N48192 |
|
MIC-MAIN(J26) |
WIRE CONNECTOR/H 2P |
EX07N48233 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
