Galaxy
DX Radios DX959
Documentation Project
CBTricks.com
Frequency
Counter PCB (EPT900040Z)
Trace

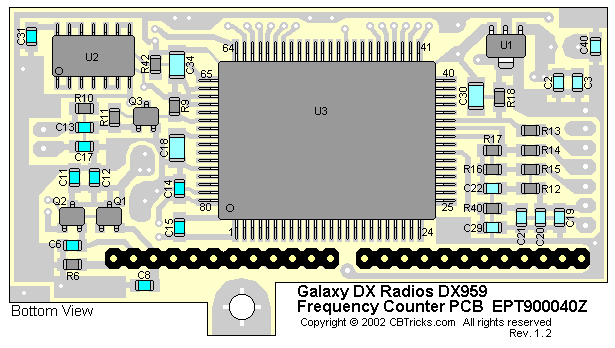

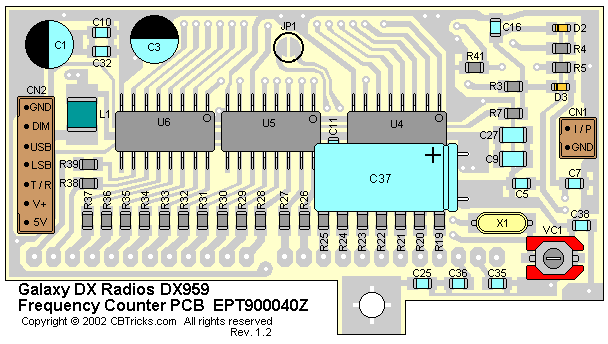

Layout
Ref.
No.
|
Description |
MFR.
Part No.
|
|
FREQ. COUNTER PCB Complete with Components |
#MT-145G-1 |
|
COUNTER P.C.B. 62x34.5x1.6tmm (d) |
EPT900040Z |
Ref.
No.
|
Description |
MFR.
Part No.
|
R3 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R4 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
R5 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
R6 |
CHIP/F/R (SMD) 330 OHM 0.1W |
RCY013314Z |
R7 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R9 |
CHIP/F/R (SMD) 470 OHM 0.1W |
RCY014714Z |
R10 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R11 |
CHIP/F/R (SMD) 33K OHM 0.1W |
RCY013334Z |
R12 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R13 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R14 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R15 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R16 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R17 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R18 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R19 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R20 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R21 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R22 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R23 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R24 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R25 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R26 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R27 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R28 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R29 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R30 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R31 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R32 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R33 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R34 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R35 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R36 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R37 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R38 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R39 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R40 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
R41 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
R42 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
Ref.
No.
|
Description |
MFR.
Part No.
|
C1 |
E/C 100UF 16WV Z H=5MM |
CEM161077Z |
C2 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C3 |
E/C 100UF 16WV Z H=5MM |
CEM161077Z |
C5 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C6 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C7 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C8 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C9 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
C10 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C11 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C12 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C13 |
CHIP/C (SMD) 0.001UF 50WV Z SL |
CK1102AB7L |
C14 |
CHIP/C (SMD) 33PF 50WV J CH |
CK1330AB4A |
C15 |
CHIP/C (SMD) 15PF 50WV J CH |
CK1150AB4A |
C16 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C17 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C18 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
C19 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C20 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C21 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C22 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C25 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C27 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
C28 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C29 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C30 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
C31 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C32 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C33 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C34 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
C35 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C36 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
C37 |
E/C 1000UF 16WV Z |
CE0161087Z |
C38 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
C40 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
VC1 |
TRIMMER/C (SMD) TZC03P200A110 20PF |
CV038200AY |
Ref.
No.
|
Description |
MFR.
Part No.
|
U1 |
I.C. (SMD) TK11650U 3PIN |
YNTO11650U |
U2 |
IC (SMD) TC4093BFN 14PIN |
YNTA04093B |
U3 |
I/C 80PIN LC7232N-8985 |
YNRG0GX3SP |
U4 |
I.C.(SMD) BA6250F-TP 16PIN |
YNRO06250F |
U5 |
I.C.(SMD) BA6250F-TP 16PIN |
YNRO06250F |
U6 |
I.C.(SMD) BA6250F-TP 16PIN |
YNRO06250F |
Ref.
No.
|
Description |
MFR.
Part No.
|
Q1 |
T/R(SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Q2 |
T/R(SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Q3 |
TR (SMD) 2SC2714-TE85L |
TY2SC2714Z |
Ref.
No.
|
Description |
MFR.
Part No.
|
D2 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D3 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
Ref.
No.
|
Description |
MFR.
Part No.
|
L1 |
CHOKE COIL(SMD) 1000UH TF J |
YCTLI1083F |
Ref.
No.
|
Description |
MFR.
Part No.
|
X1 |
CRYSTAL HC-49U 4.500MHz |
EYCAP04500 |
Ref.
No.
|
Description |
MFR.
Part No.
|
|
PCB CONNECTOR/S 12P |
EX07N48927 |
CN1 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
CN2 |
PCB CONNECTOR/S 7P PH=2MM |
EX07N48224 |
CRYSTAL |
DISPLAY SPONGE 18x12x6t |
XZZZ90092Z |
