Galaxy DX Radios DX959
Documentation Project

CBTricks.com

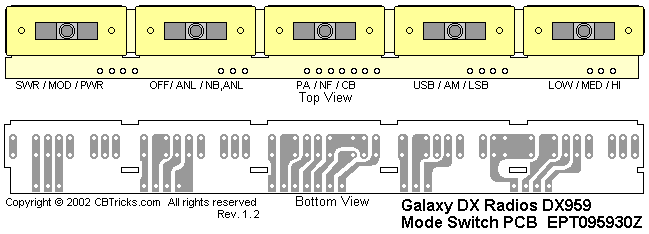

Mode Switch PCB (EPT095930Z)




Ref. No.
Description
MFR. Part No.


MODE P.C.B.

#MT-145G-P03



MODE P.C.B. 111x12.7x1.6tmm(S)

EPT095930Z



Ref. No.
Description
MFR. Part No.

SLIDE SW

EWSL31027K



SET SCREW M2.6x0.45Px4 SLIDE SW (10)

JS052604MN



Ref. No.
Description
MFR. Part No.

SLIDE SW

MASK PLATE(SW) 20mm

XZZZ90296A
