Galaxy
DX Radios DX95T
Documentation Project
CBTricks.com
Dimmer

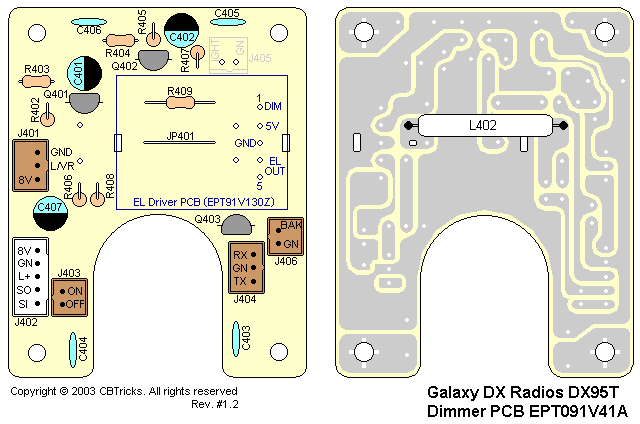

PCB (EPT091V41A)
Trace
Layout
Parts List
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
Dimmer PCB EPT091V41A (DX-95T) Complete with Components. |
#T-149A-P04 |
|
|
METER P.C.B. |
EPT091V41A |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R402 |
C/F/R F-TYPE 12K OHM 1/16W U |
RCU161234Z |
|
R403 |
C/F/R P-TYPE 47K OHM
1/16W P |
RCP164734Z |
|
R404 |
C/F/R P-TYPE 10K OHM 1/16W P |
RCP161034Z |
|
R405 |
C/F/R F-TYPE 3.3K OHM 1/16W U |
RCU163324Z |
|
R406 |
C/F/R F-TYPE 47 OHM 1/16W U |
RCU164704Z |
|
R407 |
C/F/R F-TYPE 1K OHM 1/16W U |
RCU161024Z |
|
R408 |
C/F/R F-TYPE 47 OHM 1/16W U |
RCU164704Z |
|
R409 |
C/F/R P-TYPE 15 OHM 1/16W P |
RCP161504Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C401 |
E/C 47UF 16WV Z (MINI) |
CEM164767Z |
|
C402 |
E/C 47UF 16WV Z (MINI) |
CEM164767Z |
|
C403 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C404 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C405 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C406 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C407 |
E/C 47UF 16WV Z (MINI) |
CEM164767Z |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q401 |
T/R 2SC945P |
T2SC00945P |
|
Q402 |
T/R 2SC945P |
T2SC00945P |
|
Q403 |
T/R DTC124ESATP |
TDTC0124ES |
Lamps
|
Ref#
|
Description |
MFR.
Part No.
|
|
Lamp401 |
LAMP 0.05A 12V RED |
EX02N40229 |
|
Lamp402 |
LAMP 0.05 12V |
EX02N40230 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J401 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J402 |
PCB CONNECTOR/S 5P PH=2MM (WHITE) |
EX07W48826 |
|
J403 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J404 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J406 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
Jumper
|
Ref#
|
Description |
MFR.
Part No.
|
|
JP401 |
JUMPER WIRE 7x10x7mm |
WX01070710 |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
Dimmer PCB |
SCREW T2.6x5-2 (4) |
JS052605TS |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
