Schematic Diagram
Schematic Diagram
Galaxy
DX Radios DX95T
Documentation Project
CBTricks.com
EL

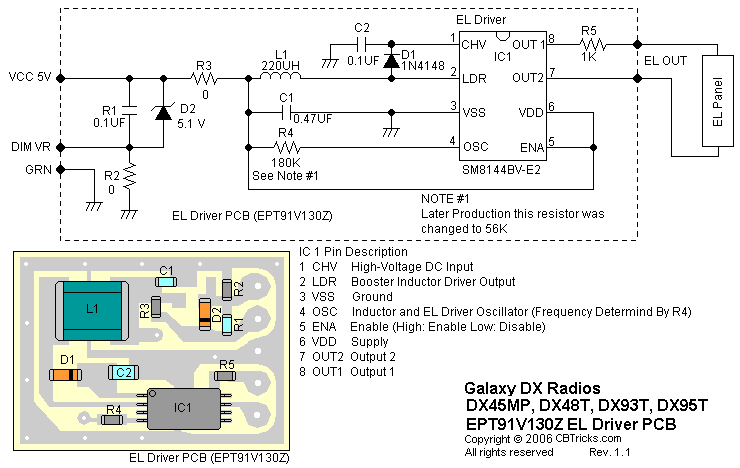

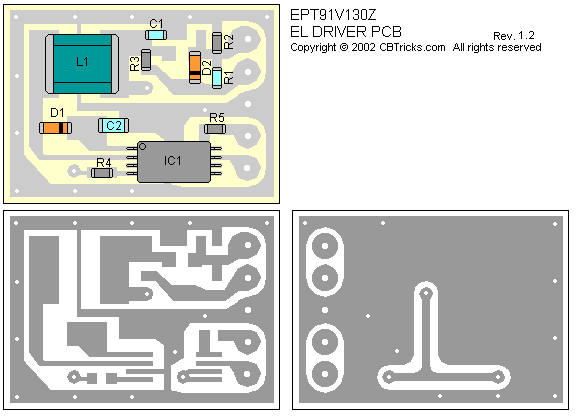

Driver PCB (EPT91V130Z)
Schematic
Diagram
Schematic
Diagram
Parts List
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
EL DRIVER PCB EPT91V130Z (DX-95T) Complete with Components. |
#T-149A-P07 |
|
|
EL DRIVER PCB 22x15x1.6tmm (d) |
EPT91V130Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R1 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
|
R2 |
CHIP/F/R (SMD) 0 OHM |
RCY060004Z |
|
R3 |
CHIP/F/R (SMD) 0 OHM |
RCY060004Z |
|
R4 |
CHIP/F/R (SMD) 180K
OHM 5% |
RCY061844Z |
|
R5 |
CHIP/F/R (S.M.D.) 1K OHM |
RCY061024Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C1 |
CHIP/C (SMD) 0.47UF 16WV Z Y5V |
CK5474AD7R |
|
C2 |
CHIP/C (SMD) 0.1UF 50WV K X7R |
CK1104AB5X |
Integrated Circuits
|
Ref#
|
Description |
MFR.
Part No.
|
|
IC1 |
I.C. (S.M.D.) SM8144BV-E2 8PIN |
YNSN8144BV |
Inductors
|
Ref#
|
Description |
MFR.
Part No.
|
|
L1 |
CHOKE COIL (SMD) 220UH TE K |
YCTLI2274E |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D1 |
DIODE (S.M.D.) 1N4148 |
ED1N04148Y |
|
D2 |
ZENER DIODE(S.M.D) RLZ5.1BT6-11 |
EDZD05519Y |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
DRIVER PCB |
PCB CONNECTOR/S 5P L=12mm PH=2.5 |
EX07N48265 |
|
ID PLATE |
WIRE CONNECTOR/H 2P PH=2mm L=50mm |
EX07N48539 |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
EL DRIVER PCB-METER PCB |
FOAM 14x14x2 |
XZZZ90053Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
