Galaxy
DX Radios DX95T
Documentation Project
CBTricks.com

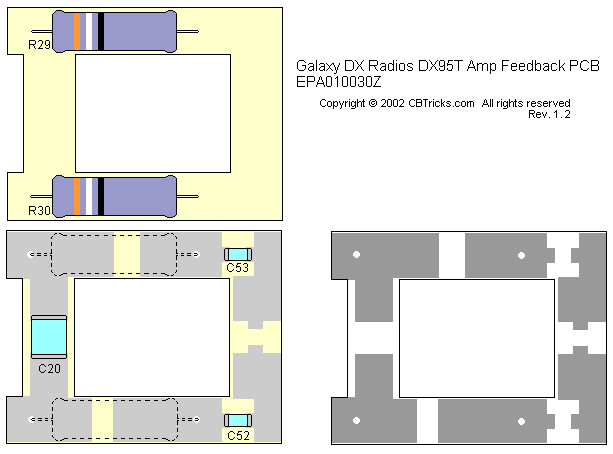

Amp Feed Back PCB (EPA010030Z)
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
FEEDBACK PCB EPA010030Z Complete with Components. |
#T-141Q-1 |
|
|
FEEDBACK PCB 33.25x22.75x1.6tmm |
EPA010030Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C20 |
MICA CHIP/C 1200PF 500WV J CH |
CK3122BE4A |
|
C52 |
CHIP/C (SMD) 0.1UF 100WV K X7R |
CK4104AA5X |
|
C53 |
CHIP/C (SMD) 0.1UF 100WV K X7R |
CK4104AA5X |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R29 |
M/O/R P-TYPE 39 OHM 3W P |
RFP303904Z |
|
R30 |
M/O/R P-TYPE 39 OHM 3W P |
RFP303904Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
