Galaxy
DX Radios DX95T
Documentation Project
CBTricks.com

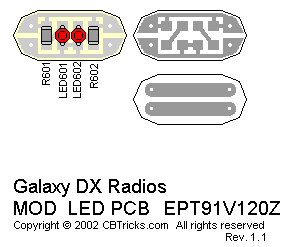

MOD LED PCB (EPT91V120Z)
Parts List
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
MOD LED PCB EPT91V120Z (DX-95T) Complete with Components. |
#T-149-P05 |
|
|
MOD LED PCB 86x56.75x1.0tmm (d) |
EPT91V120Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R601 |
CHIP/F/R (SMD) 1K OHM |
RCY061024Z |
|
R602 |
CHIP/F/R (SMD) 1K OHM |
RCY061024Z |
LED's
|
Ref#
|
Description |
MFR.
Part No.
|
|
LED601 |
LED LAMPS(RED)SMD KPT-1608SRD-PRV |
EX01Y40143 |
|
LED602 |
LED LAMPS(RED)SMD KPT-1608SRD-PRV |
EX01Y40143 |
