Galaxy
DX Radios DX95T
Documentation Project
CBTricks.com

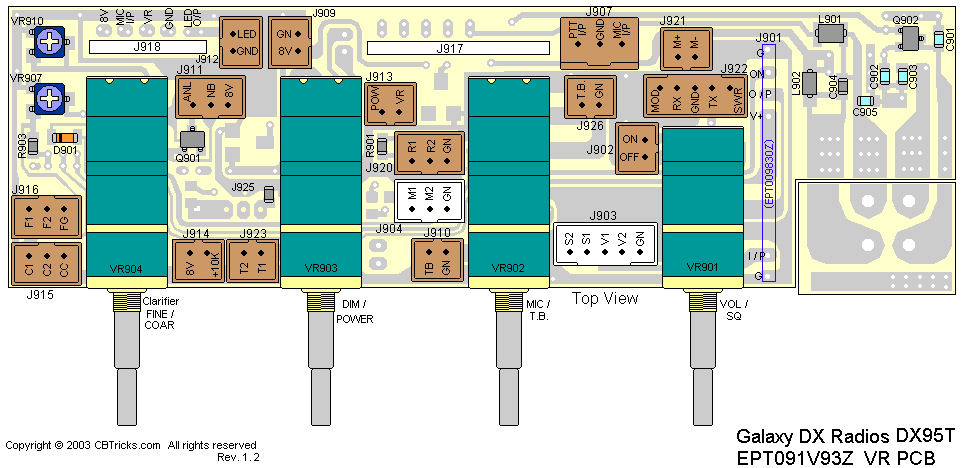

VR PCB (EPT091V93Z)
Trace Layout
Parts List
Ref#
|
Description |
MFR.
Part No.
|
|
VR-PCB(DX-95T100W) EPT091V93Z Complete with Components. |
#T-149B-P09 |
|
VR-PCB 151.5x80x1.6t (d) |
EPT091V93Z |
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R901 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R903 |
CHIP/F/R (SMD) 47 OHM 0.1W |
RCY014704Z |
|
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
J925 |
CHIP/F/R (SMD) 6.8K OHM 0.1W |
RCY016824Z |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C901 |
CHIP/C (SMD) 0.001UF 50WV Z SL (K X7R) |
CK1102AB7L |
C902 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
C903 |
CHIP/C (SMD) 0.001UF 50WV Z SL (K X7R) |
CK1102AB7L |
C904 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
COPPER SIDE |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
Diodes
Ref#
|
Description |
MFR.
Part No.
|
D901 |
DIODE (SMD) 1N4148 |
ED1N04148Y |
Pots
Ref#
|
Description |
MFR.
Part No.
|
VR901(VOL/SQ) |
V/R(RK097221101K) 50KB/50KA W/SW |
RV50303522 |
VR902(MIC/TB) |
V/R 20KA/1KA W/PUSH SW |
RV20303570 |
VR903(DIM/POWER) |
V/R 5KB/5KB W/PUSH SW |
RV50203571 |
VR904(FINE/COAR) |
V/R 20KB/1KB W/PUSH SW |
RV20303568 |
VR907 |
S/F/R (SMD) 10KB 3L(TMC4K) |
RE103Y0125 |
VR910 |
S/F/R (SMD) 1K (TMC3KJ) |
RE102Y0128 |
Transistors
Ref#
|
Description |
MFR.
Part No.
|
Q901 |
T/R (SMD) DTA143EK |
TYDTA143EK |
Q902 |
T/R (SMD) DTA124EUAT106 |
TYDTA124EA |
Inductors
Ref#
|
Description |
MFR.
Part No.
|
L901 |
CHOKE COIL (SMD) 5.6UH TC J |
YCTLI5653C |
L902 |
BEAD FERRITE COIL WB-403025 |
YCBAD18581 |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
J902 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J903 |
PCB CONNECTOR/S 5P PH=2MM (WHITE) |
EX07W48826 |
J904 |
PCB CONNECTOR/S 3P PH=2MM (WHITE) |
EX07W48824 |
J907 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
J909 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J910 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J911 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
J912 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J913 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J914 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J915 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
J916 |
PCB CONNECTOR/S 3P PH=2MM (WHITE) |
EX07W48824 |
J920 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
J921 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J922 |
PCB CONNECTOR/S 5P PH=2MM |
EX07N48222 |
J923 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J926 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
