Galaxy
DX Radios DX95T2
Documentation Project
CBTricks.com

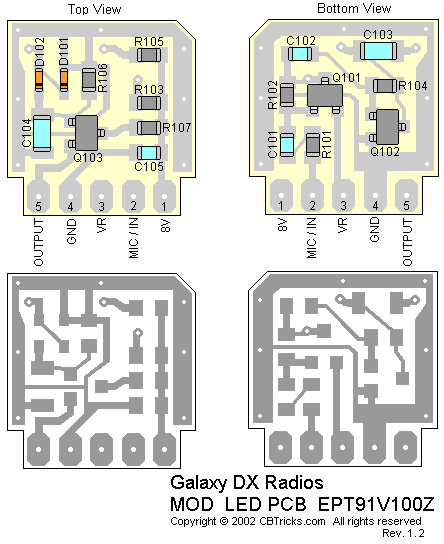

MOD LED PCB (EPT91V100Z)

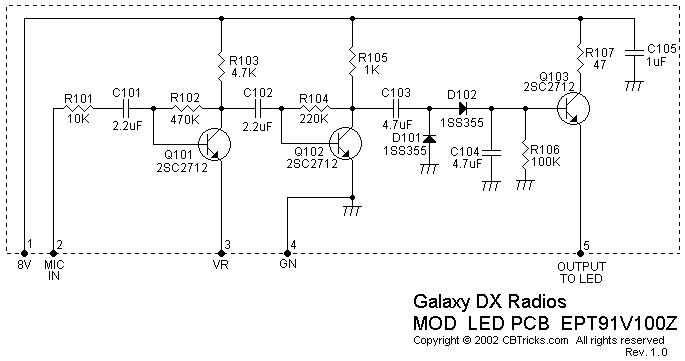

Schematic
Parts List
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
MODLED(DIRVER) EPT91V100Z(DX-91V) |
#T-149-P10 |
|
|
MODLED(DIRVER) 85.5x75.25x10t(d) |
EPT91V100Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R101 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R102 |
CHIP/F/R (SMD) 470K OHM 0.1W |
RCY014744Z |
|
R103 |
CHIP/F/R (SMD) 4.7K OHM 0.1W |
RCY014724Z |
|
R104 |
CHIP/F/R (SMD) 220K OHM 0.1W |
RCY012244Z |
|
R105 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
|
R106 |
CHIP/F/R (SMD) 100K OHM 0.1W |
RCY011044Z |
|
R107 |
CHIP/F/R (SMD) 47 OHM 0.1W |
RCY014704Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C101 |
CHIP/C 2.2UF 16WV Z Y5V |
CK5225AB7R |
|
C102 |
CHIP/C 2.2UF 16WV Z Y5V |
CK5225AB7R |
|
C103 |
CHIP/C 4.7UF 16WV Z Y5V |
CK5475AA7R |
|
C104 |
CHIP/C 4.7UF 16WV Z Y5V |
CK5475AA7R |
|
C105 |
CHIP/C 1UF 16WV Z Y5V |
CK5105AB7R |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D101 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D102 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q101 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q102 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q103 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
