Galaxy
DX Radios DX979
Documentation Project
CBTricks.com

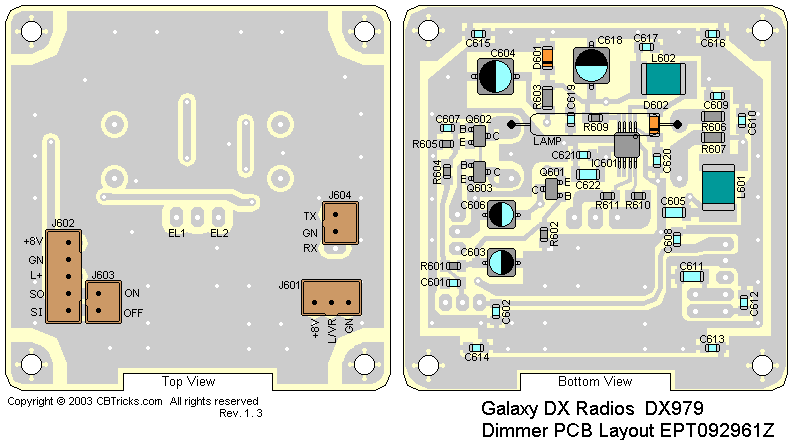

Dimmer PCB Layout (EPT092961Z)
Trace Layouts
Schematic
Ref# |
Description |
MFR. Part No. |
DIMMER PCB EPT092961Z
|
#T-145X-P06 |
|
DIMMER PCB 46x46x1.6tmm(d) |
EPT092960Z |
Resistors
Ref#
|
Description |
MFR. Part No. |
R601 |
CHIP/F/R (SMD) 12K OHM 0.1W |
RCY011234Z |
R602 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
R603 |
CHIP/F/R (SMD) 15 OHM 1/4W |
RCY141504Z |
R604 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R605 |
CHIP/F/R (SMD) 3.3K OHM 0.1W |
RCY013324Z |
R606 |
CHIP/F/R (SMD) 47 OHM 1/4W |
RCY144704Z |
R607 |
CHIP/F/R (SMD) 47 OHM 1/4W |
RCY144704Z |
R609 |
CHIP/F/R (SMD) 180K OHM 0.1W |
RCY011844Z |
R610 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
R611 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
Capacitors
Ref#
|
Description |
MFR. Part No. |
C601 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C602 |
CHIP/C (SMD) 0.01UF 50WV K |
CK1103AB5X |
C603 |
E/C (SMD) 47UF 16WV Z |
CEY164767Z |
C604 |
E/C (SMD) 100UF 25WV Z |
CEY251077Z |
C605 |
CHIP/C (SMD) 4.7UF 16WV Z Y5V |
CK5475AA7R |
C606 |
E/C (SMD) 47UF 16WV Z |
CEY164767Z |
C607 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C608 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C609 |
CHIP/C (SMD) 0.01UF 50WV K |
CK1103AB5X |
C610 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C611 |
CHIP/C (SMD) 4.7UF 16WV Z Y5V |
CK5475AA7R |
C612 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C613 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
C614 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
C615 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
C616 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
C617 |
CHIP/C (SMD) 0.47UF 25WV Z Y5V |
CK2474AB7R |
C618 |
E/C (SMD) 100UF 25WV Z |
CEY251077Z |
C619 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AB7R |
C620 |
CHIP/C (SMD) 0.1UF 50WV K |
CK1104AB5X |
C621 |
CHIP/C (SMD) 0.047UF 50WV K |
CK1473AB5X |
C622 |
T/C (SMD) 10UF 16WV M ('A'CASE) |
CTY161066A |
Inductors
Ref#
|
Description |
MFR. Part No. |
L601 |
CHOKE COIL(SMD) 470UH TE K |
YCTLI4774E |
L602 |
CHOKE COIL(SMD) 220UH TE K |
YCTLI2274E |
Transistors
Ref#
|
Description |
MFR. Part No. |
Q601 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Q602 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Q603 |
T/R (SMD) DTC124EUAT106 |
TYDTC124EA |
Integrated Circuits
Ref#
|
Description |
MFR. Part No. |
IC601 |
I.C. (S.M.D.) SM8144BV-E2 8PIN |
YNSN8144BV |
Diodes
Ref#
|
Description |
MFR. Part No. |
D601 |
ZENER DIODE(S.M.D) RLZ5.1BT6-11 |
EDZD05519Y |
D602 |
DIODE (S.M.D.) 1N4148 |
ED1N04148Y |
Lamps
Ref#
|
Description |
MFR. Part No. |
LAMP |
LAMP 0.05 12V |
EX02N40230 |
Connectors
Ref#
|
Description |
MFR. Part No. |
J601 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
J602 |
PCB CONNECTOR/S 5P PH=2MM (WHITE) |
EX07W48826 |
J603 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
TX LAMP |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
