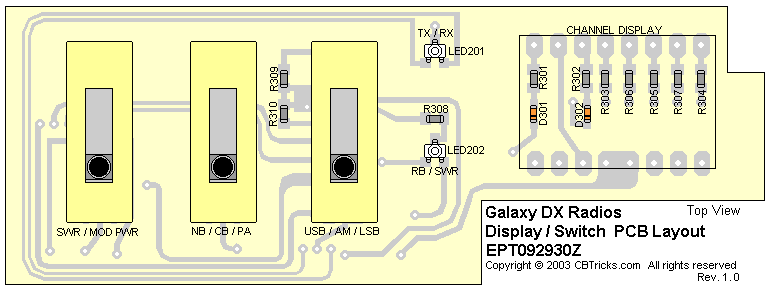

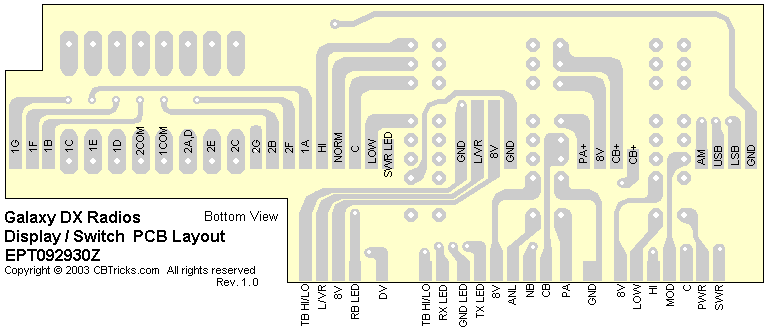

Display / Switch PCB Layout (EPT092930Z)
Trace Layouts

Ref#

Description

MFR. Part No.



DISPLAY EPT092930Z Complete with Components

#T-145X-P03



DISPLAY PCB 81x30x1.6tmm(d)

EPT092930Z



Resistors

Ref#

Description

MFR. Part No.

R301

CHIP/F/R (SMD) 680 OHM 0.1W

RCY016814Z

R302

CHIP/F/R (SMD) 680 OHM 0.1W

RCY016814Z

R303

CHIP/F/R (SMD) 680 OHM 0.1W

RCY016814Z

R304

CHIP/F/R (SMD) 680 OHM 0.1W

RCY016814Z

R305

CHIP/F/R (SMD) 680 OHM 0.1W

RCY016814Z

R306

CHIP/F/R (SMD) 680 OHM 0.1W

RCY016814Z

R307

CHIP/F/R (SMD) 680 OHM 0.1W

RCY016814Z

R308

CHIP/F/R (SMD) 1K OHM 0.1W

RCY011024Z

Diodes

Ref#

Description

MFR. Part No.

D301

DIODE (SMD) 1SS355

EDSS00355Y

D302

DIODE (SMD) 1SS355

EDSS00355Y

LED's

Ref#

Description

MFR. Part No.

LED201

LED LAMPS (S.M.D.) KM-23ESGCRED/GREEN
     (TX/RX)

EX01Y40114

LED202

LED LAMPS (S.M.D.) KM-23ESGCRED/GREEN
     (RB/SWR)

EX01Y40114



LED DISPLAY TX-566 (RED)L=11.5

EX03N40419

Switch

Ref#

Description

MFR. Part No.

HI/OFF/LO

SLIDE SW 3N

EWSL31027K

NB/CB/PA

SLIDE SW 3N

EWSL31027K

SWR/M

SLIDE SW 3N

EWSL31027K

Hardware

Ref#

Description

MFR. Part No.

Slide SW

SET SCREW M2.6x0.45Px4     (12)

JS052604MN



SW CHASSIS

MTDX55042X
