Galaxy DX Radios DX979
Documentation Project

CBTricks.com

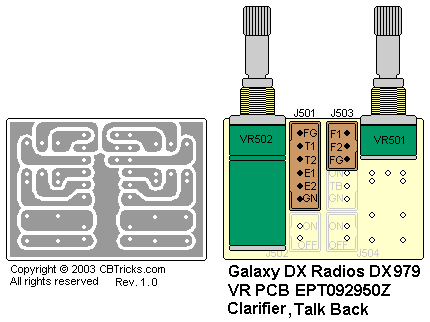

VR PCB, Clarifier / Talk Back PCB (EPT092950Z)

Ref#

Description

MFR. Part No.



VR PCB (Clarifier / Talk Back) EPT092950Z
Complete with Components

#T-145X-P05



VR PCB (Clarifier / Talk Back) 32x24x1.6tmm (S)

EPT092950Z

Potentiometers

Ref#

Description

MFR. Part No.

VR501

VR 1KB (RK097111012C)     (CLARIFIER)

RV10203528

VR502

VR 20KA/SW (RK097111103E)    (TALKBACK)

RV20303558

Connectors

Ref#

Description

MFR. Part No.

J501

PCB CONNECTOR/S 6P PH=2

EX07N48331

J503

PCB CONNECTOR/S 3P PH=2MM

EX07N48350
