Galaxy
DX Radios DX98VHP
Documentation Project
CBTricks.com
Dimmer

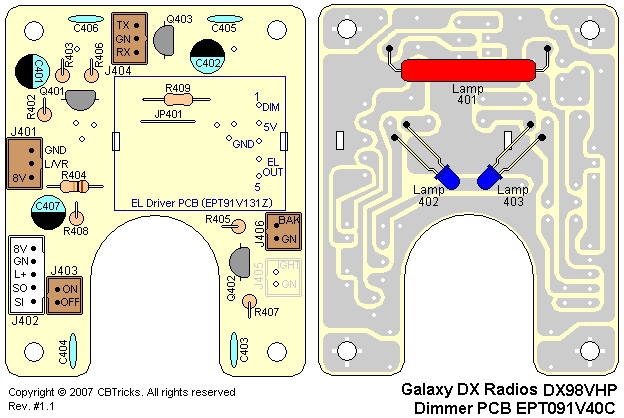

PCB (EPT091V40C)
Trace
Layout
Schematic Diagram
Parts List
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
DIMMER PCB (DX-98VHP) EPT091V40C |
#T-149E-P04 |
|
|
EPT091V40C |
EPT091V40C |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R402 |
C/F/R F-TYPE 12K OHM 1/16W U |
RCU161234Z |
|
R403 |
C/F/R 100K OHM 1/16W P |
RCP161044Z |
|
R404 |
C/F/R P-TYPE 10K OHM 1/16W P |
RCP161034Z |
|
R405 |
C/F/R 3.9K OHM 1/16W U |
RCU163924Z |
|
R406 |
C/F/R F-TYPE 47 OHM 1/16W U |
RCU164704Z |
|
R407 |
C/F/R F-TYPE 1K OHM 1/16W U |
RCU161024Z |
|
R408 |
C/F/R 680 OHM 1/16W U |
RCU166814Z |
|
R409 |
C/F/R P-TYPE 15 OHM 1/16W |
RCP161504Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C401 |
E/C (MINI) 47UF 16WV Z |
CEM164767Z |
|
C402 |
E/C (MINI) 47UF 16WV Z |
CEM164767Z |
|
C403 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C404 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C405 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C406 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C407 |
E/C (MINI) 47UF 16WV Z |
CEM164767Z |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q401 |
T/R 2SC945P |
T2SC00945P |
|
Q402 |
T/R DTC124ESATP |
TDTC0124ES |
|
Q403 |
T/R DTC124ESATP |
TDTC0124ES |
Lamp
|
Ref#
|
Description |
MFR.
Part No.
|
|
Lamp 401 |
LAMP 0.05A 12V RED |
EX02N40229 |
|
Lamp 402 |
LED 3F G BLUE |
EX01N40152 |
|
Lamp 403 |
LED 3F G BLUE |
EX01N40152 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J401 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J402 |
PCB CONNECTOR/S 5P PH=2MM (WHITE) |
EX07W48826 |
|
J403 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J404 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J406 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
Jumpers
|
Ref#
|
Description |
MFR.
Part No.
|
|
JP401 |
JUMPER WIRE 7x8x7 |
WX01070708 |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
Lamp402, 403 |
REF LABEL H15 |
LZZZ61587A |
|
Lamp
402, 403
|
REFRACTOR LABEL H100x10 |
LZZZ61276Z |
|
METER |
SPONGE 10x10x1tmm |
XZZZ90418Z |
|
DIMMER PCB (4) |
SET SCREW M2.6x0.45Px5 |
JS052605MN |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
