Galaxy
DX Radios DX98VHP
Documentation Project
CBTricks.com
ECHO PCB (EPT99HP50A)

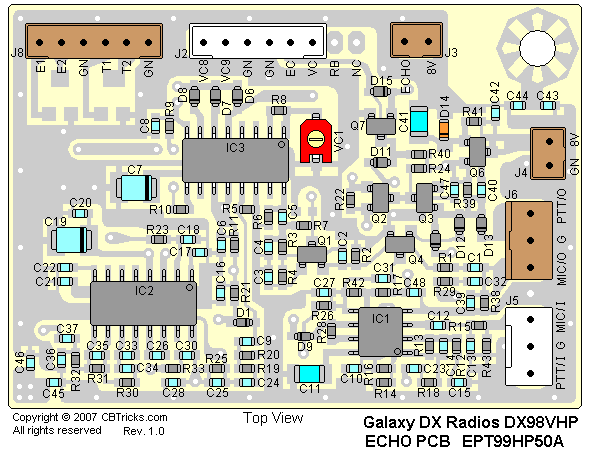

Trace Layout
Schematic Diagram
Ref#
|
Description |
MFR.
Part No.
|
EVRP ECHO (DX-98HP) EPT99HP50A |
#T-149D-P06 |
|
EPT99HP50A |
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R1 |
CHIP/F/R (SMD) 2.2K OHM |
RCY062224Z |
R2 |
CHIP/F/R (SMD) 1K OHM |
RCY061024Z |
R3 |
CHIP/F/R (SMD) 5.6K OHM |
RCY065624Z |
R4 |
CHIP/F/R (SMD) 6.8KOHM 0.1W |
RCY066824Z |
R5 |
CHIP/F/R (SMD) 1MEG OHM |
RCY061054Z |
R6 |
CHIP/F/R (SMD) 1K OHM |
RCY061024Z |
R7 |
CHIP/F/R (SMD) 100K OHM |
RCY061044Z |
R8 |
CHIP/F/R (SMD) 15K OHM |
RCY061534Z |
R9 |
CHIP/F/R (SMD) 15K OHM |
RCY061534Z |
R10 |
CHIP/F/R (SMD) 3.3K OHM |
RCY063324Z |
R11 |
CHIP/F/R (SMD) 10 OHM |
RCY061004Z |
R12 |
CHIP/F/R (SMD) 2.2K OHM |
RCY062224Z |
R13 |
CHIP/F/R (SMD) 33K OHM |
RCY063334Z |
R14 |
CHIP/F/R (SMD) 22K OHM |
RCY062234Z |
R15 |
CHIP/F/R (SMD) 10K OHM |
RCY061034Z |
R16 |
CHIP/F/R (SMD) 22K OHM |
RCY062234Z |
R17 |
CHIP/F/R (SMD) 10 OHM |
RCY061004Z |
R18 |
CHIP/F/R (SMD) 22K OHM |
RCY062234Z |
R19 |
CHIP/F/R (SMD) 1K OHM |
RCY061024Z |
R20 |
CHIP/F/R (SMD) 47K OHM |
RCY064734Z |
R21 |
CHIP/F/R (SMD) 10K OHM |
RCY061034Z |
R22 |
CHIP/F/R (SMD) 22K OHM |
RCY062234Z |
R23 |
CHIP/F/R (SMD) 100 OHM |
RCY061014Z |
R24 |
CHIP/F/R (SMD) 1MEG OHM |
RCY061054Z |
R25 |
CHIP/F/R (SMD) 39K OHM |
RCY063934Z |
R26 |
CHIP/F/R (SMD) 33K OHM |
RCY063334Z |
R28 |
CHIP/F/R (SMD) 47K OHM |
RCY064734Z |
R29 |
CHIP/F/R (SMD) 3.3K OHM |
RCY063324Z |
R30 |
CHIP/F/R (SMD) 27K OHM |
RCY062734Z |
R31 |
CHIP/F/R (SMD) 47K OHM |
RCY064734Z |
R32 |
CHIP/F/R (SMD) 10K OHM |
RCY061034Z |
R33 |
CHIP/F/R (SMD) 27K OHM |
RCY062734Z |
R38 |
CHIP/F/R (SMD) 2.2K OHM |
RCY062224Z |
R39 |
CHIP/F/R (SMD) 4.7K OHM |
RCY064724Z |
R40 |
CHIP/F/R (SMD) 10K OHM |
RCY061034Z |
R41 |
CHIP/F/R (SMD) 4.7K OHM |
RCY064724Z |
R42 |
CHIP/F/R (SMD) 220K OHM |
RCY062244Z |
R43 |
CHIP/F/R (SMD) 1K OHM |
RCY061024Z |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C1 |
CHIP/C 1UF 16WV Z Y5V |
CK5105AD7R |
C2 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C3 |
CHIP/C 0.0022UF 50WV K X7R |
CK1222AD5X |
C5 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
C6 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
C7 |
T/C (SMD) ("B"CASE) 47UF 6.3WV |
CTY064767B |
C8 |
CHIP/C 33PF 50WV J CH |
CK1330AD4A |
C9 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C10 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
C11 |
CHIP/C 4.7UF 16WV Z Y5V |
CK5475AA7R |
C12 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C13 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
C14 |
CHIP/C 560PF 50WV K CH |
CK1561AD5A |
C15 |
CHIP/C 1UF 16WV Z Y5V |
CK5105AD7R |
C16 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C17 |
CHIP/C 1UF 16WV Z Y5V |
CK5105AD7R |
C18 |
CHIP/C 330PF 50WV K CH |
CK1331AD5A |
C19 |
T/C (SMD) ("B"CASE) 47UF 6.3WV |
CTY064767B |
C20 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C21 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C22 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C23 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C24 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C25 |
CHIP/C 560PF 50WV K CH |
CK1561AD5A |
C26 |
CHIP/C 0.047UF 50WV K X7R |
CK1473AD5X |
C27 |
CHIP/C 0.001UF 50WV K X7R |
CK1102AD5X |
C28 |
CHIP/C 0.001UF 50WV K X7R |
CK1102AD5X |
C30 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
C31 |
CHIP/C 1UF 16WV Z Y5V |
CK5105AD7R |
C32 |
CHIP/C 1UF 16WV Z Y5V |
CK5105AD7R |
C33 |
CHIP/C 0.047UF 50WV K X7R |
CK1473AD5X |
C34 |
CHIP/C 0.022UF 50WV K X7R |
CK1223AD5X |
C35 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
C36 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
C37 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C39 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
C40 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C41 |
CHIP/C 4.7UF 16WV Z Y5V |
CK5475AA7R |
C42 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C43 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C44 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C45 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C46 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C47 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
C48 |
CHIP/C 0.1UF 25WV Z Y5V |
CK2104AD7R |
|
|
|
VC1 |
TRIMMER/C (SMD) 20PF 3.8p |
CV038200AY |
Integrated Circuits
Ref#
|
Description |
MFR.
Part No.
|
IC1 |
I.C. (JRC) (SMD) NJM4558M 8PIN |
YNJR04558M |
IC2 |
I.C (SMD) ES56033S 16PIN |
YNES56033S |
IC3 |
I.C. (WINLEAD) (SMD) WIN8072 16PIN |
YNWN08072Z |
Transistors
Ref#
|
Description |
MFR.
Part No.
|
Q1 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Q2 |
F.E.T. (SMD) 2SK208 |
FY2SK0208Z |
Q3 |
T/R (SMD) RN1403-TE85L |
TYZRN1403Z |
Q4 |
T/R (SMD) RN1403-TE85L |
TYZRN1403Z |
Q6 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Q7 |
T/R (SMD) RN1403-TE85L |
TYZRN1403Z |
Diodes
Ref#
|
Description |
MFR.
Part No.
|
D1 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D6 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D7 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D8 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D9 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D10 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D11 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D12 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D13 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D15 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
D14 |
ZENER DIODE (SMD) RLZ5.6V |
EDZD05569Y |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
J2 |
PCB CONNECTOR/S 6P PH=2MM (WHITE) |
EX07W48827 |
J2-40A(J413) |
WIRE CONNECTOR/H 6P-6P L=250 PH=2 |
EX07N49517 |
J3 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J3-40A(J412) |
WIRE CONNECTOR/H 2P-2P L=250mm PH=2 |
EX07N48917 |
J4 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
J4-MAIN PCB(J7) |
WIRE CONNECTOR/H 2P-2P L=100mm PH=2 |
EX07N48918 |
J5 |
PCB CONNECTOR/S 3P T PH=2.5(WHITE) |
EX07N41227 |
J6 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
J6-MAIN PCB(J12) |
WIRE CONNECTOR/H 3P-3P L=130MM |
EX07N48902 |
J8 |
PCB CONNECTOR/S 6P PH=2 |
EX07N48331 |
J8-40A(J411) |
WIRE CONNECTOR/H 6P-5P L=250 PH=2 |
EX07N49518 |
Hardware
Ref#
|
Description |
MFR.
Part No.
|
|
SHIELD COVER |
MT2100100X |
|
SHIELD HOUSING |
MT2100110X |
|
B'T OF SHIELD BOX |
MT2100120X |
|
SET SCREW M3x0.5Px6 |
JS053006MN |
|
FOAM 14x14x2 |
XZZZ90053Z |
110X(x1) |
SET SCREW M3x0.5Px4 |
JS053004MN |
PCB(x2) |
SET SCREW M3x0.5Px4 |
JS053004MN |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
