Galaxy DX Radios DX98VHP
Documentation Project

CBTricks.com

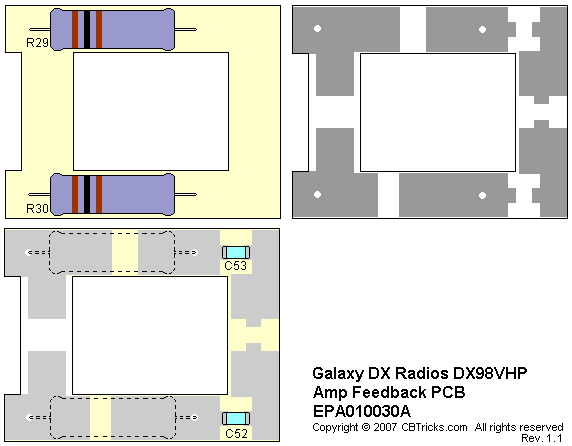

Amp Feed Back PCB (EPA010030A)

Ref#
Description
MFR. Part No.


FEEDBACK PCB EPA010030A Complete with Components.

#



FEEDBACK PCB 33.25x22.75x1.6tmm

EPA010030A



Capacitors

Ref#
Description
MFR. Part No.

C52

CHIP/C 0.01UF 100WV K X7R

CK4103AA5X

C53

CHIP/C 0.01UF 100WV K X7R

CK4103AA5X

Resistors

Ref#
Description
MFR. Part No.

R29

M/O/R 100 OHM 2W P

RFP201014Z

R30

M/O/R 100 OHM 2W P

RFP201014Z
