Galaxy DX Radios DX98VHP
Documentation Project

CBTricks.com

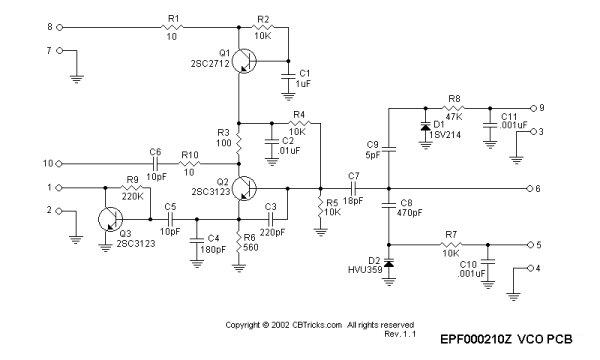

MODULAR VCO P.C.B. (EPF000210Z)
Trace Layout

Click image to see full size


Copyright © 2007 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
