Galaxy
DX Radios DX99V
Documentation Project
CBTricks.com

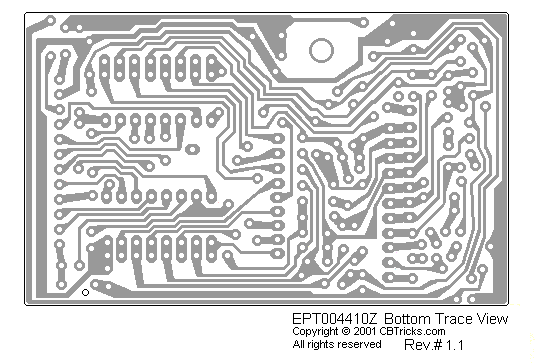

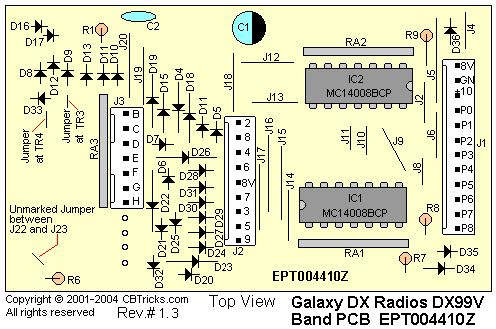

Band Board Layout (EPT004410Z)
Schematic
Diagram
Ref#
|
Description |
MFR.
Part No.
|
BAND PCB 82x50x1.6t |
EPT004410Z |
Resistor Array
Ref#
|
Description |
MFR.
Part No.
|
RA1 |
RESISTOR ARRAY 47K 8P |
RCS0870014 |
RA2 |
RESISTOR ARRAY 47K 8P |
RCS0870014 |
RA3 |
RESISTOR ARRAY 47K 8P |
RCS0870014 |
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R6 |
C/F/R 47K OHM 1/4W U |
RCU144734Z |
R7 |
C/F/R 47K OHM 1/4W U |
RCU144734Z |
R8 |
C/F/R 47K OHM 1/4W U |
RCU144734Z |
R9 |
C/F/R 47K OHM 1/4W U |
RCU144734Z |
Capacitors
Ref#
|
Description |
MFR.
Part No.
|
C1 |
E/C 220UF 10WV Z |
CE0102277Z |
C2 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
Integrated Circuits
Ref#
|
Description |
MFR.
Part No.
|
IC1 |
I.C. TC4008B 16PIN (TOSHIBA) |
ENTA04008B |
IC2 |
I.C. TC4008B 16PIN (TOSHIBA) |
ENTA04008B |
Diodes
Ref#
|
Description |
MFR.
Part No.
|
D4-36 |
DIODE 1N4148 |
EDIN04148Z |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
J1 |
PCB CONNECTOR/S 12P T |
EX07N41309 |
J1 |
WIRE CONNECTOR/H 12P |
EX07N48484 |
J2 |
PCB CONNECTOR/S 9P T |
EX07N48083 |
J2 |
WIRE CONNECTOR/H 9P-9P |
EX07N48483 |
J3 |
PCB CONNECTOR/S 7P T |
EX07N48167 |
J3 |
WIRE CONNECTOR/H 7P L=290mm |
EX07N48759 |
Jumper Wire
Ref#
|
Description |
MFR.
Part No.
|
J4 |
JUMPER WIRE 7x6x7mm |
WX01070706 |
J5 |
JUMPER WIRE 7x15x7mm |
WX01070715 |
J6 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
J7 |
JUMPER WIRE 7x7x7mm |
WX01070707 |
J8 |
JUMPER WIRE 7x4x7mm |
WX01070704 |
J9 |
JUMPER WIRE 7x9x7mm |
WX01070709 |
J10 |
JUMPER WIRE 7x5x7mm |
WX01070705 |
J11 |
JUMPER WIRE 7x4x7mm |
WX01070704 |
J12 |
JUMPER WIRE 7x9x7mm |
WX01070709 |
J13 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
J14 |
JUMPER WIRE 7x9x7mm |
WX01070709 |
J15 |
JUMPER WIRE 7xl3x7mm |
WX01070713 |
J16 |
JUMPER WIRE 7xl3x7mm |
WX01070713 |
J17 |
JUMPER WIRE 7x11x7mm |
WX01070711 |
J18 |
JUMPER WIRE 7x11x7mm |
WX01070711 |
J19 |
JUMPER WIRE 7x10x7mm |
WX01070710 |
J20 |
JUMPER WIRE 7x11x7mm |
WX01070711 |
