Galaxy DX Radios DX99V
Documentation Project

CBTricks.com

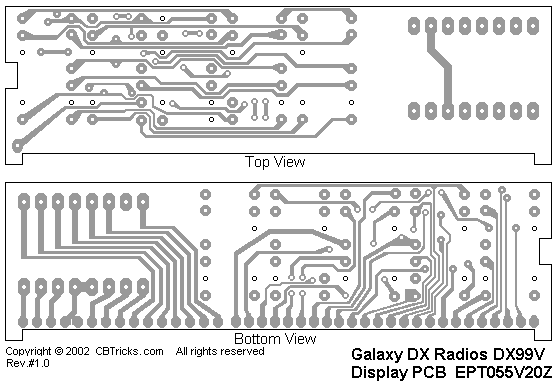

Display PCBLayout (EPT055V20Z)

Ref#
Description
MFR. Part No.


DISPLAY P.C.B. EPT055V20Z Complete with Components

#T-140O-P06



DISPLAY P.C.B.

EPT055V20Z



Ref#
Description
MFR. Part No.

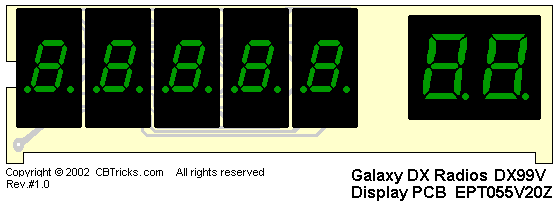

Counter

LED DISPLAY LSD3922(GREEN)

EX03N40485

Channel

LED DISPLAY GREEN

EX03N40016
