Galaxy
DX Radios DX99V
Documentation Project
CBTricks.com

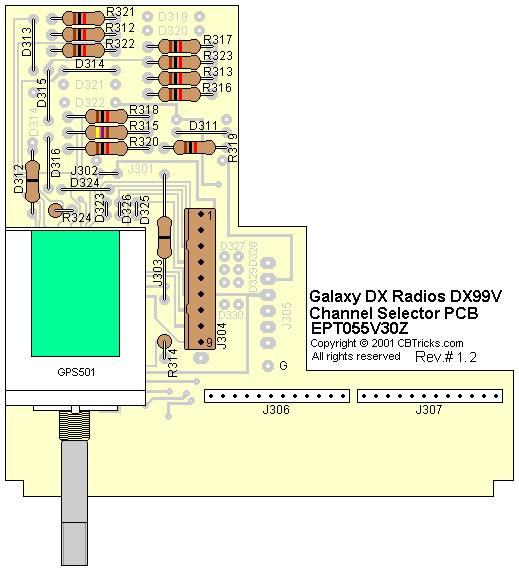

Channel Selector PCB (EPT055V30Z)
Copper
Trace Layout
Ref#
|
Description |
MFR.
Part No.
|
|
CH SW P.C.B. EPT055V30Z Complete with Components |
#MT-140P-P04 |
|
CH SW P.C.B. |
EPT055V30Z |
Resistors
Ref#
|
Description |
MFR.
Part No.
|
R312 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R313 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R314 |
C/F/R 1K OHM 1/4W U |
RCU141024Z |
R315 |
C/F/R 470 OHM 1/4W M |
RCM144714B |
R316 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R317 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R318 |
C/F/R 1K OHM 1/4W M |
RCM141024B |
R319 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R320 |
C/F/R 1K OHM 1/4W M |
RCM141024B |
R321 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R322 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R323 |
C/F/R 1K OHM 1/4W M |
RCM141024A |
R324 |
C/F/R 1K OHM 1/4W U |
RCU141024Z |
D312 |
C/F/R 0 OHM 1/4W P |
RCP140004Z |
Connectors
Ref#
|
Description |
MFR.
Part No.
|
J304 |
PCB CONNECTOR/S 9P T |
EX07N48083 |
J306
|
PCB CONNECTOR/S 12P PH=2(WHITE) |
EX07N48767
|
J306
|
WIRE CONNECTOR/H 12P-12P L=100 PH=2 |
EX07W49252
|
J307
|
PCB CONNECTOR/S 12P PH=2 |
EX07N48150
|
J307
|
WIRE CONNECTOR/H 12P-12P L=120 PH=2 |
EX07W49253
|
Jumper Wire
Ref#
|
Description |
MFR.
Part No.
|
J302 |
JUMPER WIRE 7x3x7mm |
WX01070703 |
J303 |
C/F/R 0 OHM 1/4W P |
RCP140004Z |
J323 |
JUMPER WIRE 7x3x7mm |
WX01070703 |
J325 |
JUMPER WIRE 7x3x7mm |
WX01070703 |
J326 |
JUMPER WIRE 7x3x 7mm |
WX01070703 |
D311 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
D313 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
D314 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
D315 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
D316 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
D324 |
JUMPER WIRE 7x8x7mm |
WX01070708 |
Switch
Ref#
|
Description |
MFR.
Part No.
|
ROTARY SW GPS-0501 |
EWRT32000S |
