Galaxy
DX Radios DX99V
Documentation Project
CBTricks.com
Frequency
Conversion For (EPT004410A SMT Band PCB)
Export Frequency Conversion
|
1.
|
Remove
the bottom cover from the unit and locate the frequency divider circuit
board on the left side of the unit. Remove the screw holding the board
and plug in the loose connector to J3 of the frequency divider circuit
board. |
|
2.
|

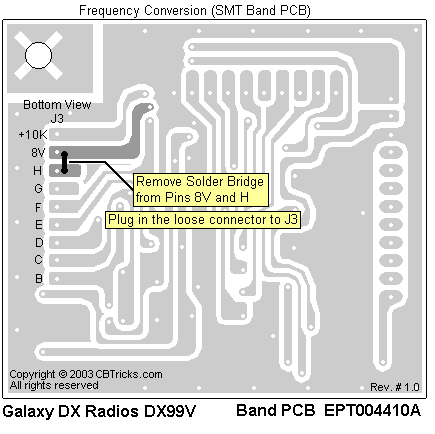

Unsolder
and remove the solder bridge from pins 8V and H on the bottom of the pcb
as shown in the diagram above, and re-mount the board back in place. |
WARNING! Not Legal For Class D CB Use In The U.S.A.
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
