Galaxy DX Radios DX99V
Documentation Project

CBTricks.com

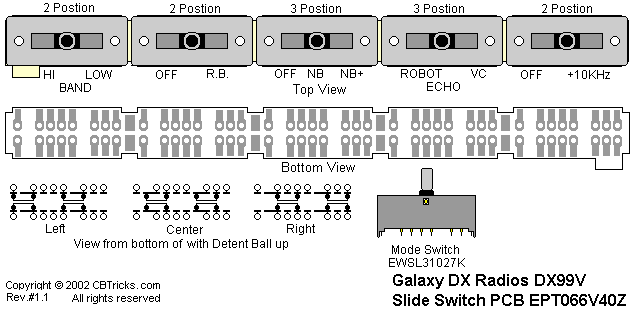

MODE SWITCH PCB (EPT066V40Z)



Ref. # Description
MFR. Part No.

SILDE SW P.C.B. EPT066V40Z Complete with Components
#T-140P-P0


SILDE P.C.B. 112x11x1.6tmm (S)

EPT066V40Z

Switch

Ref. #
Description
MFR. Part No.
BAND
Slide Switch (2 Pos.)
EWSL31026K
R. B.

Slide Switch (2 Pos.)

EWSL31026K

NB

Slide Switch (3 Pos.)

EWSL31027K

ECHO
Slide Switch (3 Pos.)
EWSL31027K
+10KHz
Slide Switch (2 Pos.)
EWSL31026K

Hardware

Ref. #
Description
MFR. Part No.
(10)
SET SCREW M2.6x0.45Px4 SLIDE SW
JS052604MN


MASK PLATE(SW) SLIDE SW

XZZZ90296A
