Galaxy DX Radios DX99V
Documentation Project
CBTricks.com
Dimmer PCB (EPT55V-51Z)
Schematic Diagram

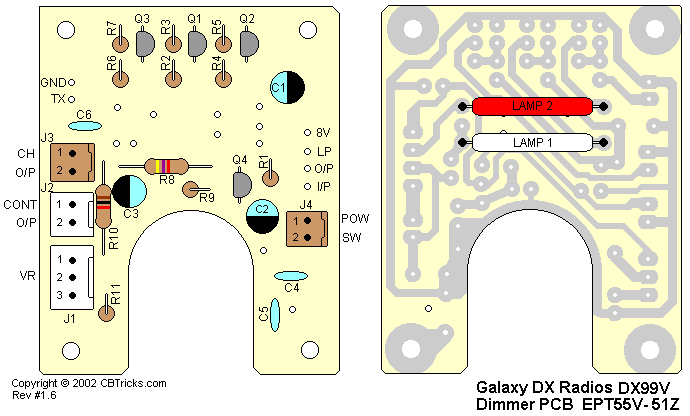

Trace Layout

Ref#
 Description
MFR. Part No.


DIMMER P.C.B. EPT055V51Z Complete with Components

#T-140O-P05


DIMMER P.C.B. 42x52x1.6tmm(S)

EPT055V51Z



Ref#
 Description
MFR. Part No.

R1

C/F/R 47 OHM 1/4W U

RCU144704Z

R2

C/F/R F-TYPE 10K OHM 1/4W U

RCU141034Z

R3

C/F/R 3.3K OHM 1/4W U

RCU143324Z

R4

C/F/R F-TYPE 10K OHM 1/4W U

RCU141034Z

R5

C/F/R 2.2K OHM 1/4W U

RCU142224Z

R6

C/F/R F-TYPE 10K OHM 1/4W U

RCU141034Z

R7

C/F/R 2.2K OHM 1/4W U

RCU142224Z

R8

C/F/R 4.7K OHM 1/4W M

RCM144724B

R9

C/F/R 47K OHM 1/4W U

RCU144734Z

R10

C/F/R 1K OHM 1/4W M

RCM141024B

R11

C/F/R  F-TYPE 1K OHM 1/4W U

RCU141024Z



Ref#
 Description
MFR. Part No.

C1

E/C 47UF 16WV Z

CE0164767Z

C2

E/C 10UF 25WV Z

CE0251067Z

C3

E/C 47UF 16WV Z

CE0164767Z

C4

C/C 0.01UF 50WV SL Z

CC0501037L

C5

C/C 0.01UF 50WV SL Z

CC0501037L

C6

C/C 0.01UF 50WV SL Z

CC0501037L



Ref#
 Description
MFR. Part No.


LAMP 0.05A 12V RED

EX02N40229


LAMP 0.05 12V

EX02N40230



Ref#
 Description
MFR. Part No.

Q1

TR 2SC945P

T2SC00945P

Q2

TR 2SC945P

T2SC00945P

Q3

TR 2SC945P

T2SC00945P

Q4

TR 2SC945P

T2SC00945P



Ref#
 Description
MFR. Part No.

J1

PCB CONNECTOR/S 3P T PH=2.5(WHITE)

EX07N41227

J1

WIRE CONNECTOR/H 3P L=120MM

EX07N48192

J2

PCB CONNECTOR/S 2P T PH=2.5(WHITE)

EX07N41330

J2

WIRE CONNECTOR/H 2P L=180MM

EX07N48041

J3

PCB CONNECTOR/S 2P PH=2.5

EX07N41226

J3

WIRE CONNECTOR/H

EX07N48196

J4

PCB CONNECTOR/S 2P PH=2.5

EX07N41226

J4

WIRE CONNECTOR/H 2P L=100MM

EX07N48195



Ref#
 Description
MFR. Part No.

 (4)

SET SCREW M2.6x0.45Px4

JS052604MN
