Galaxy DX Radios FC-347
Documentation Project

CBTricks.com

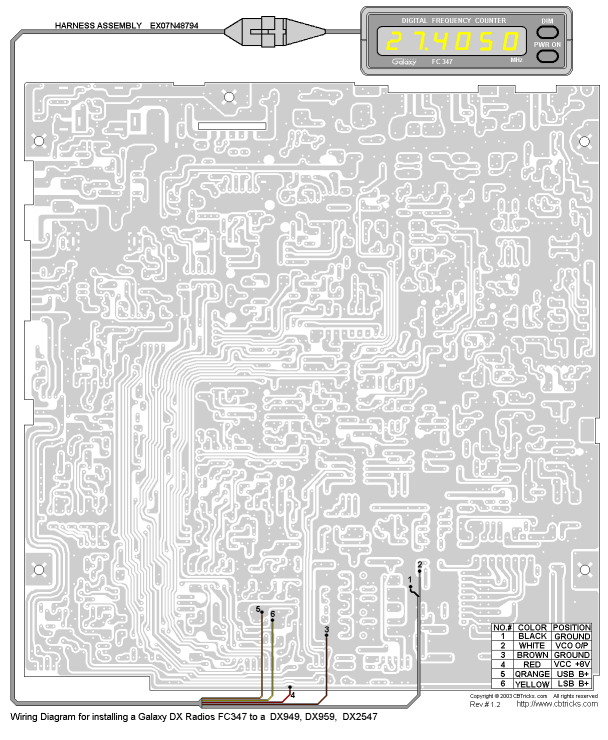

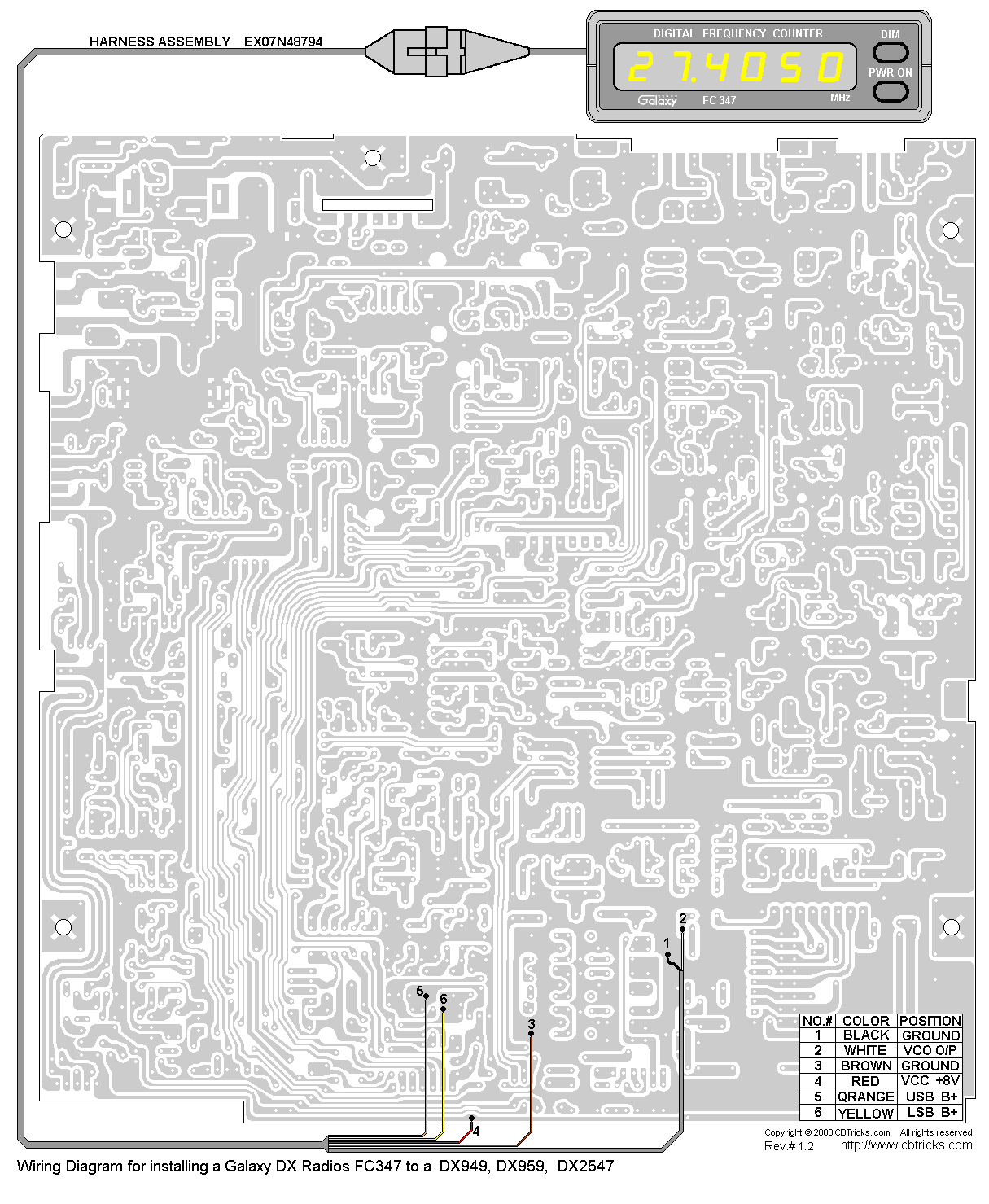

FC347 Wiring Diagram for a DX949, DX959, DX2547

Click on image to see full size
