Galaxy DX Radios FC347
Documentation Project

CBTricks.com

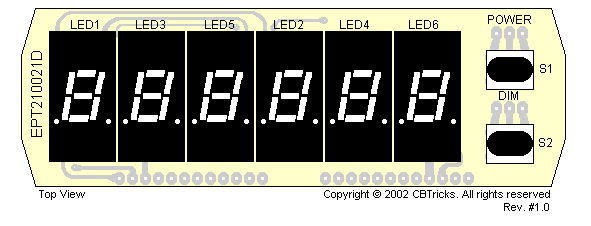

Display PCB (EPT210021D)

Top View



Ref#

Description

MFR. Part No.



DISPLAY P.C.B. EPT210021D

#A-700-P02



DISPLAY P.C.B. 83x27x1.6tmm(d)

EPT210021D

LED

Ref#

Description

MFR. Part No.



LED DISPLAY LSD3922 (GREEN)

EX03N40485



LED DISPLAY WINDOW FC-347

PA0003020D

Switch

Ref#

Description

MFR. Part No.



PUSH SW SPPH21226A

EWPS33033X



PUSH KEY BLACK

PT7001070B
