Galaxy DX Radios FC347
Documentation Project

CBTricks.com

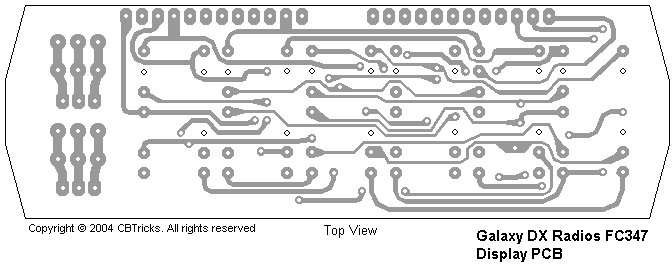

Display PCB Trace Layout
(EPT210021D)


Copyright © 1998,1999,2000, 2001, 2002, 2003, 2004 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
