Galaxy
DX Radios FC347
Documentation Project
CBTricks.com

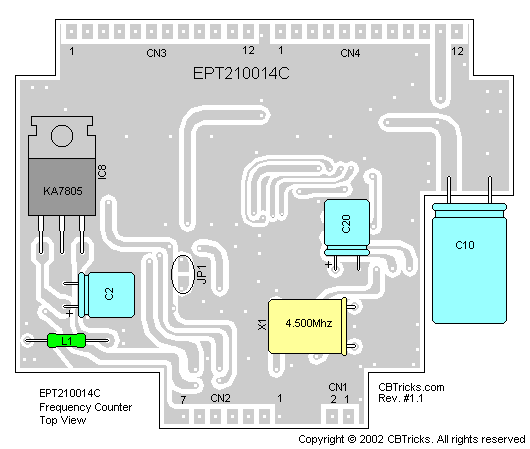

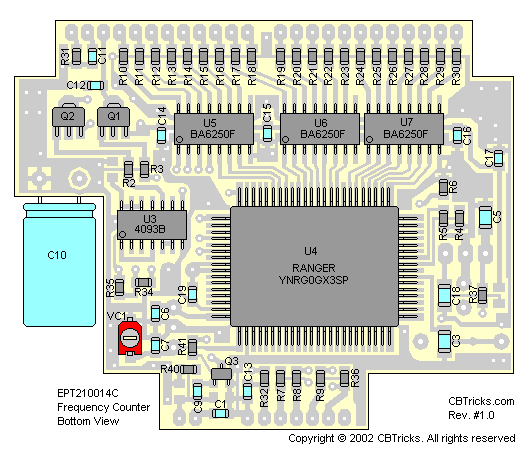

Frequency Counter PCB (EPT210014C)
Ref# |
Description |
MFR. Part No. |
|
COUNTER P.C.B. EPT210014C |
#A-700-D01 |
|
COUNTER P.C.B. 62x51x1.6tmm(d) |
EPT210014C |
Resistors
Ref# |
Description |
MFR. Part No. |
R2 |
CHIP/F/R (SMD) 4.7K OHM 0.1W |
RCY014724Z |
R3 |
CHIP/F/R (SMD) 4.7K OHM 0.1W |
RCY014724Z |
R4 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R5 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R6 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R7 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R8 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R9 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
R10 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R11 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R12 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R13 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R14 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R15 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R16 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R17 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R18 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R19 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R20 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R21 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R22 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R23 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R24 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R25 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R26 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R27 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R28 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R29 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R30 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R31 |
CHIP/F/R (SMD) 330 OHM 0.1W |
RCY013314Z |
R32 |
CHIP/F/R (SMD) 10 OHM 0.1W |
RCY011004Z |
R33 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
R35 |
CHIP/F/R (SMD) 470 OHM 0.1W |
RCY014714Z |
R36 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R37 |
CHIP/F/R (SMD) 47 OHM 0.1W |
RCY014704Z |
R40 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
R41 |
CHIP/F/R (SMD) 33K OHM 0.1W |
RCY013334Z |
R42 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
Trimmer Capacitors
Ref# |
Description |
MFR. Part No. |
VC1 |
TRIMMER/C (SMD) 20PF TCZ03P200A110B00 |
CV038200AY |
Capacitors
Ref# |
Description |
MFR. Part No. |
C1 |
CHIP/C 0.1UF 50WV Z F Y5V |
CK1104AB7R |
C2 |
E/C (MINI) 100UF 16WV Z |
CEM161077Z |
C3 |
CHIP/C 0.1UF 25WV M Z5U K X7R |
CK2104AA6U |
C5 |
CHIP/C 0.1UF 25WV M Z5U K X7R |
CK2104AA6U |
C6 |
CHIP/C 33PF 50WV J CH |
CK1330AB4A |
C7 |
CHIP/C 15PF 50WV J CH |
CK1150AB4A |
C9 |
CHIP/C 0.001UF 50WV Z SL K X7R |
CK1102AB7L |
C10 |
E/C 1000UF 16WV Z |
CE0161087Z |
C11 |
CHIP/C 0.01UF 50WV M Z5U K X7R |
CK1103AB6U |
C12 |
CHIP/C 0.01UF 50WV M Z5U K X7R |
CK1103AB6U |
C13 |
CHIP/C 0.01UF 50WV M Z5U K X7R |
CK1103AB6U |
C14 |
CHIP/C 0.01UF 50WV M Z5U K X7R |
CK1103AB6U |
C15 |
CHIP/C 0.01UF 50WV M Z5U K X7R |
CK1103AB6U |
C16 |
CHIP/C 0.01UF 50WV M Z5U K X7R |
CK1103AB6U |
C17 |
CHIP/C 0.01UF 50WV M Z5U K X7R |
CK1103AB6U |
C18 |
CHIP/C 0.1UF 25WV M Z5U K X7R |
CK2104AA6U |
C19 |
CHIP/C 0.01UF 50WV M Z5U K X7R |
CK1103AB6U |
C20 |
E/C (MINI) 100UF 16WV Z |
CEM161077Z |
Inductors
Ref# |
Description |
MFR. Part No. |
L1 |
CHOKE COIL 470UH |
ECCHK16096 |
Crystals
Ref# |
Description |
MFR. Part No. |
X1 |
CRYSTAL HC-49/U 4.500MHz |
EYCAP04500 |
Integrated Circuits
Ref# |
Description |
MFR. Part No. |
U1 |
IC (TOSHIBA) (SMD) TC4093BFN 14PIN |
YNTA04093B |
U4 |
IC 80PIN LC7232N-8985 |
YNRG0GX3SP |
U5 |
IC (S.M.D) BA6250F-TP 16PIN |
YNRO06250F |
U6 |
IC (S.M.D) BA6250F-TP 16PIN |
YNRO06250F |
U7 |
IC (S.M.D) BA6250F-TP 16PIN |
YNRO06250F |
U8 |
IC (SGS) L7805 |
ENSG07805Z |
Transistors
Ref# |
Description |
MFR. Part No. |
Q1 |
T/R (SMD) 2SB798DL-(T1) |
TY2SB0798Z |
Q2 |
T/R (SMD) 2SB798DL-(T1) |
TY2SB0798Z |
Q3 |
T/R (SMD) 2SC2714 -TE85L |
TY2SC2714Z |
Connectors
Ref# |
Description |
MFR. Part No. |
|
WIRE CONNECTOR/H 6P L=500,400 |
EX07N48793 |
|
WIRE CONNECTOR/H 6P L=500/600 |
EX07N48794 |
Wire
Ref# |
Description |
MFR. Part No. |
|
LEAD WIRE #26 120MM BROWN 5:5 |
WL0112005Z |
|
LEAD WIRE #26 120MM RED 5:5 |
WL0212005Z |
|
LEAD WIRE #26 120MM ORANGE 5:5 |
WL0312005Z |
|
FLAT CABLE 12P |
WX02212040 |
