Galaxy DX Radios "Galaxy Plus"
Documentation Project

CBTricks.com

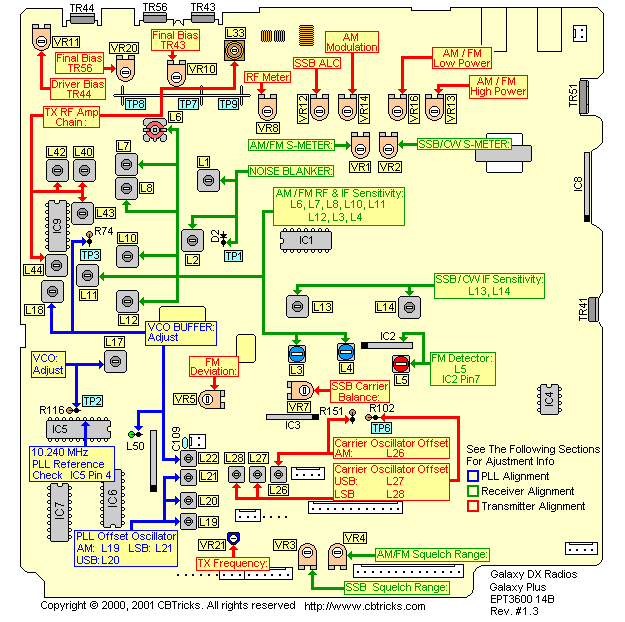

Alignment Locations

     PLL Alignment
     Transmitter Alignment
     Receiver Alignment



Copyright © 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
