Galaxy DX Radios "Galaxy Plus"
Documentation Project
CBTricks.com

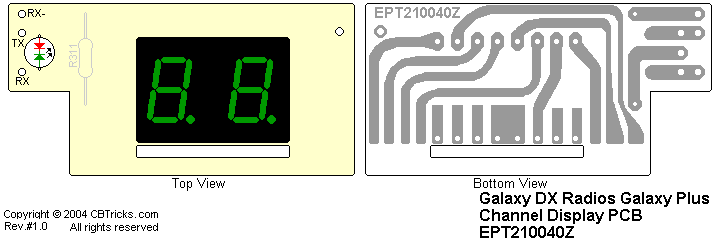

Channel Display PCB (EPT210040Z)





LED's

Ref#
Description
MFR. Part No.

CH

LED DISPLAY GREEN

EX03N40016

TX/RX

LED 3MM RED/GREEN

EX01N40004

Hardware

Ref#
Description
MFR. Part No.


LEAD WIRE #26 70MM BLACK 5:5

WL0007005Z

CH

DISPLAY WINDOW 30X23X1 ORANGE

PT2100040B
