Frequency Display and Pushbutton Switch PCB (EPT210021A)

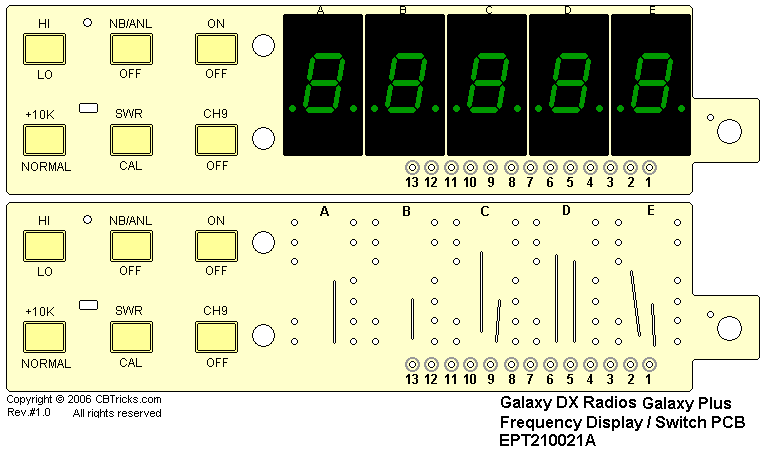

Trace Layout





Ref#
Description
MFR. Part No.


DISPLAY P.C.B. EPT210021A

#MT-115A1-P02



DISPLAY & SW P.C.B 97x24x1.6tmm (S)

EPT210021C

Switch

Ref#
Description
MFR. Part No.

R.B.

PUSH SW SPPH21226A

EWPS33033X

NB/ANL

PUSH SW SPPH21226A

EWPS33033X

Freq. ON

PUSH SW SPPH21226A

EWPS33033X

+10KHz

PUSH SW SPPH21226A

EWPS33033X

Power

PUSH SW SPPH21226A

EWPS33033X

Band

PUSH SW SPPH21226A

EWPS33033X

LED's

Ref#
Description
MFR. Part No.

Freq.

LED DISPLAY LSD3922(GREEN)

EX03N40485

Hardware

Ref#
Description
MFR. Part No.
Counter
ACRY WINDOW ORANGE
PT2100030B

Push SW

PUSH BUTTON CHROM

PT2100020A
