Hygain 11 (1291) 12 (1292)
Documentation Project

CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.



Factory Service Manual
       Page 1 to 19
       Page 21 to 37

Diagrams
  Model 1291
       Block Diagram (11x17)

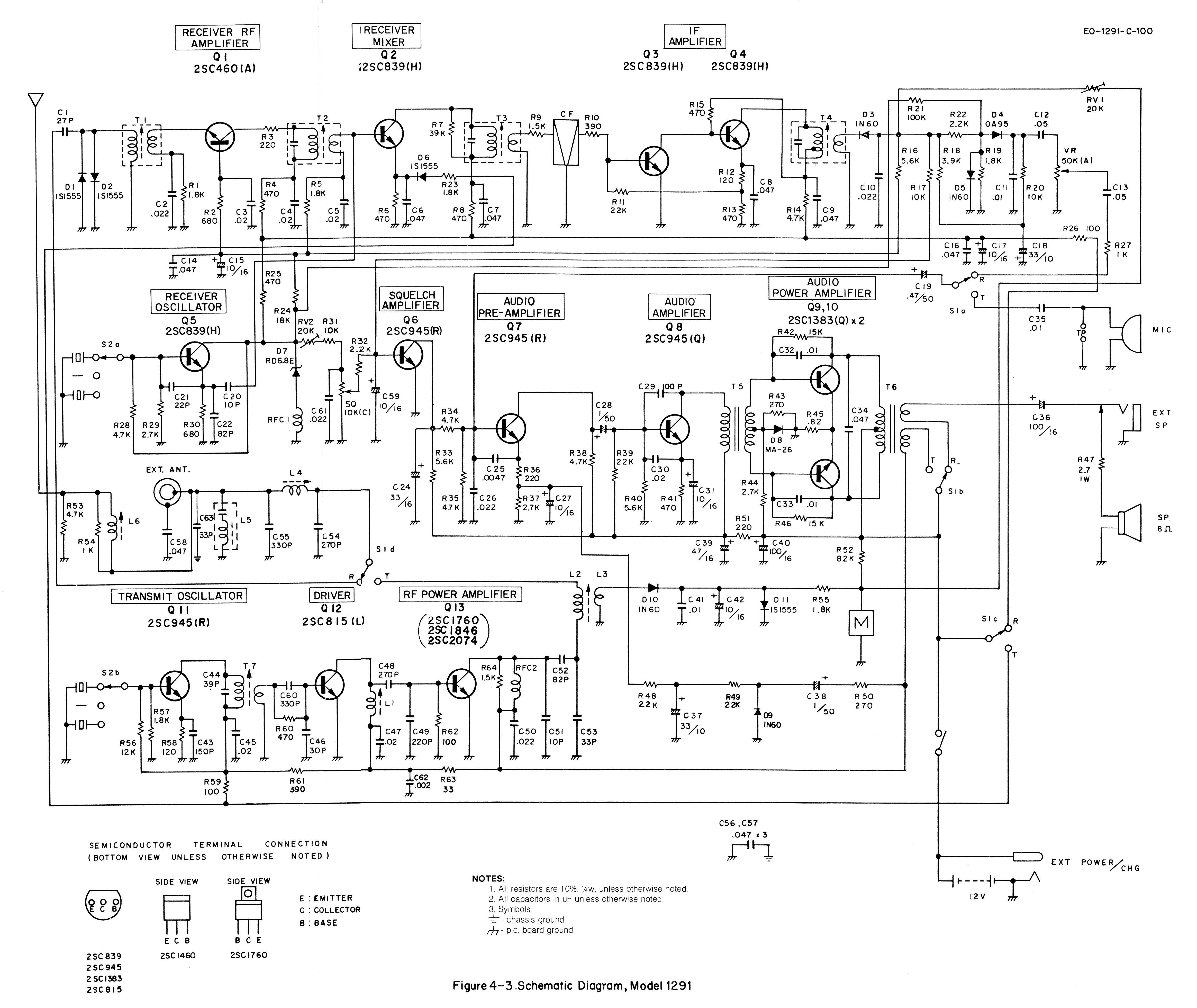

       Main Schematic
       Main Schematic (11x17)
  Model 1292
       Block Diagram (11x17)

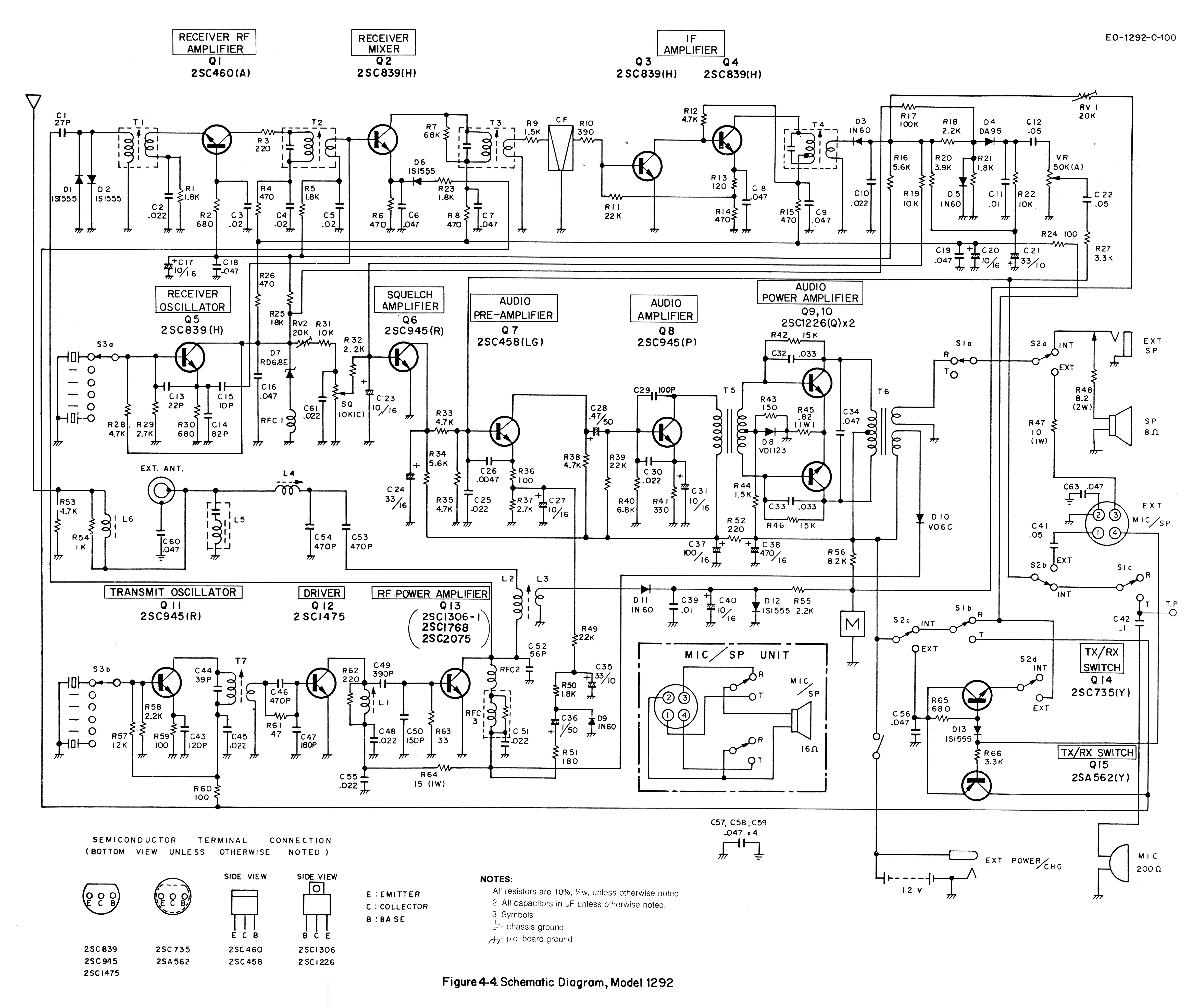

       Main Schematic
       Main Schematic (11x17)
