Hygain 5 (2705)
Documentation Project

CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.



Factory Service Manual
       Page 1 to 24
       Page 25 to 51

Diagrams
       Receive AM block Diagram (8.5x11)
       LSB block Diagram (8.5x11)
       USB block Diagram (8.5x11)
       Transmit AM block Diagram (8.5x11)
       LSB block Diagram (8.5x11)
       USB block Diagram (8.5x11)

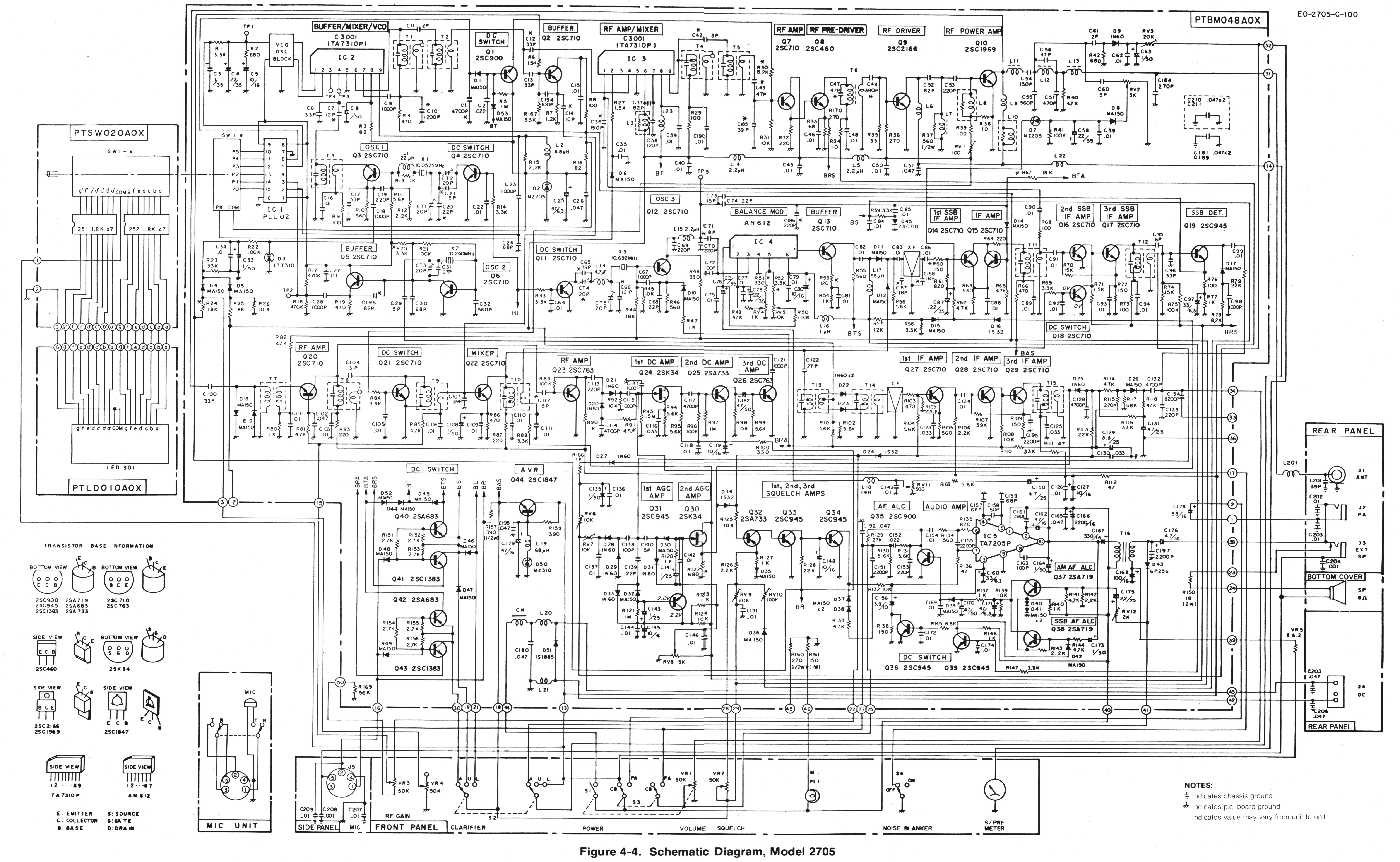

       2705 Schematic (See Note)
       2705 Schematic (11x17)

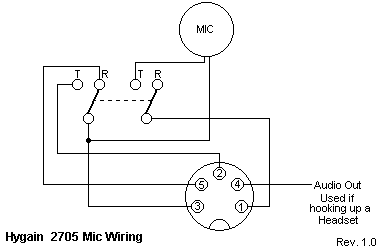

Mic Wiring

Stock

1 - Audio In (mic)
2 - Transmit
3 - Shield  (ground)
4 - Audio Out
5 - Receive

Astatic
1 - White
2 - Red
3 - Shield & Blue
4 - NC
5 - Black
     Yellow NC
