Hygain 681 682 683
Documentation Project

CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing, viewing and using this information.



Factory Service Manual (Preliminary Manual)
       Page 1 to 11

Diagrams

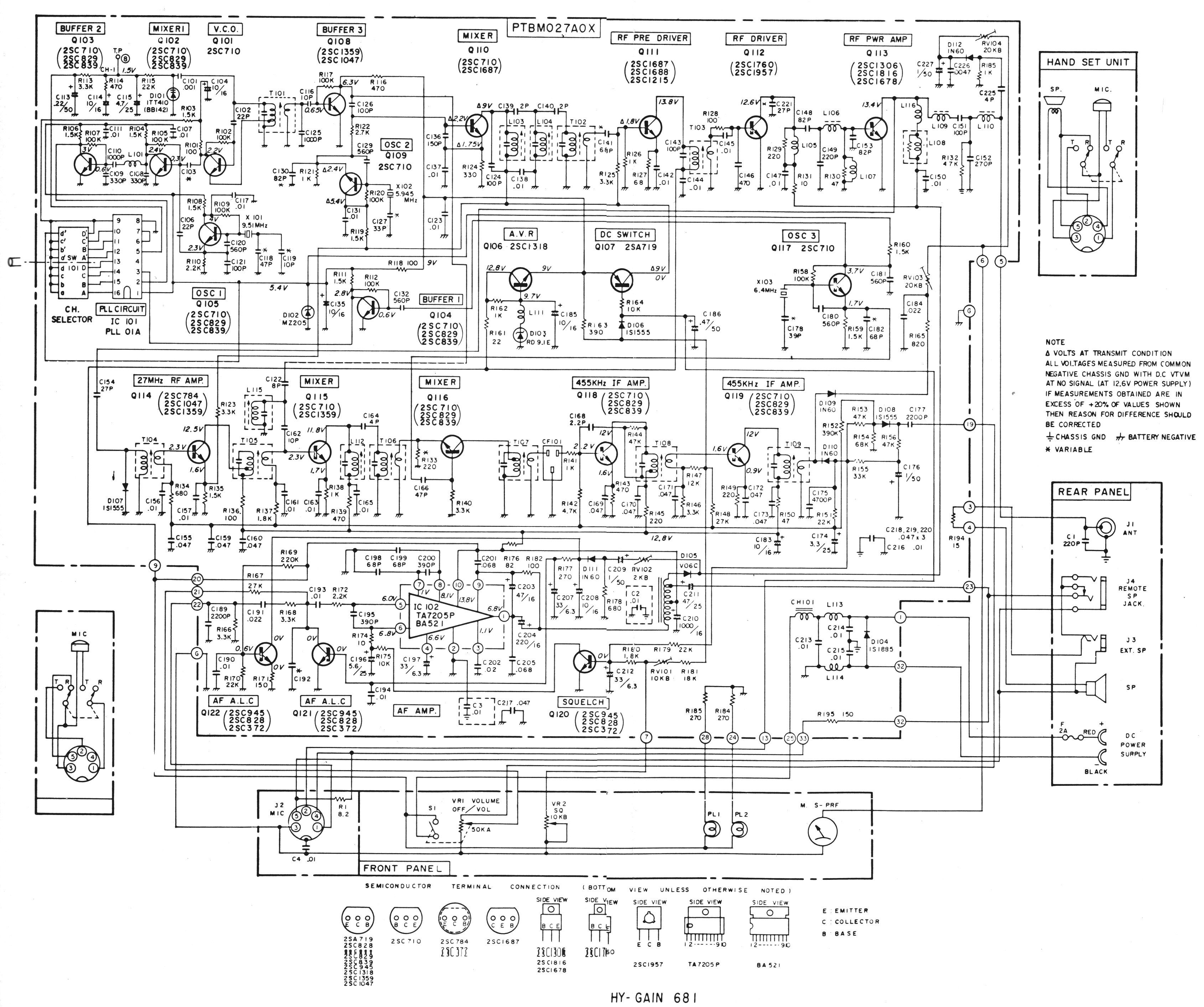

  Model 681
       Main Schematic
       Main Schematic (11x17)

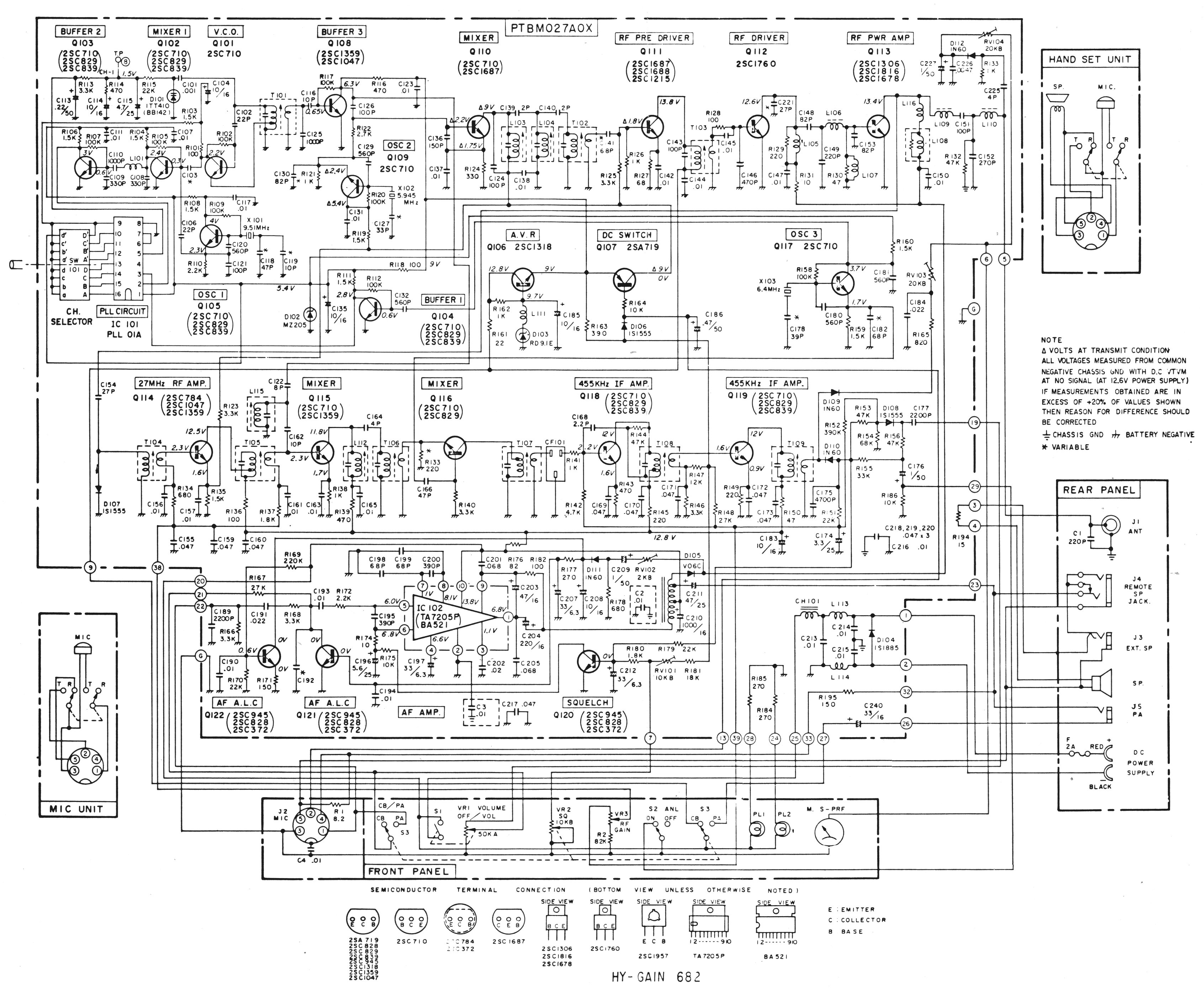

  Model 682
       Main Schematic
       Main Schematic (11x17)

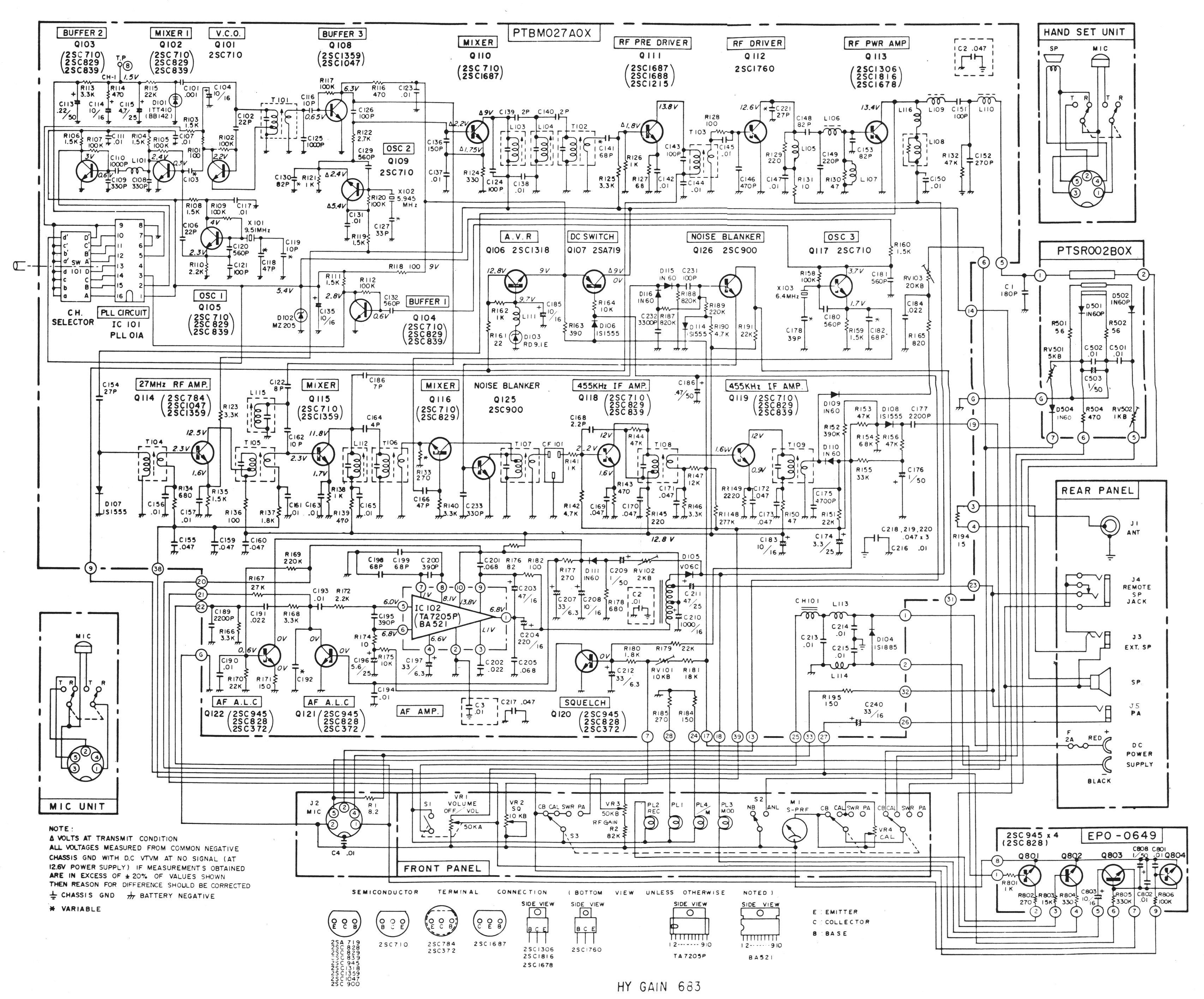

  Model 683
       Main Schematic
       Main Schematic (11x17)

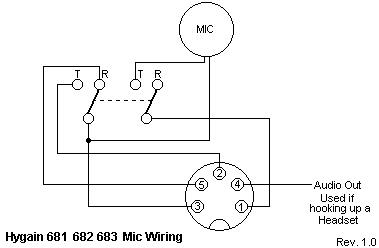

Mic Wiring

Stock

1 - Audio In (mic)
2 - Transmit
3 - Shield  (ground)
4 - Audio Out
5 - Receive

Astatic
1 - White
2 - Red
3 - Shield & Blue
4 - NC
5 - Black
     Yellow NC
