Factory Service Manual
       Page 1 to 20
       Page 21 to 39

Diagrams
       Block Diagram
  1A (681)

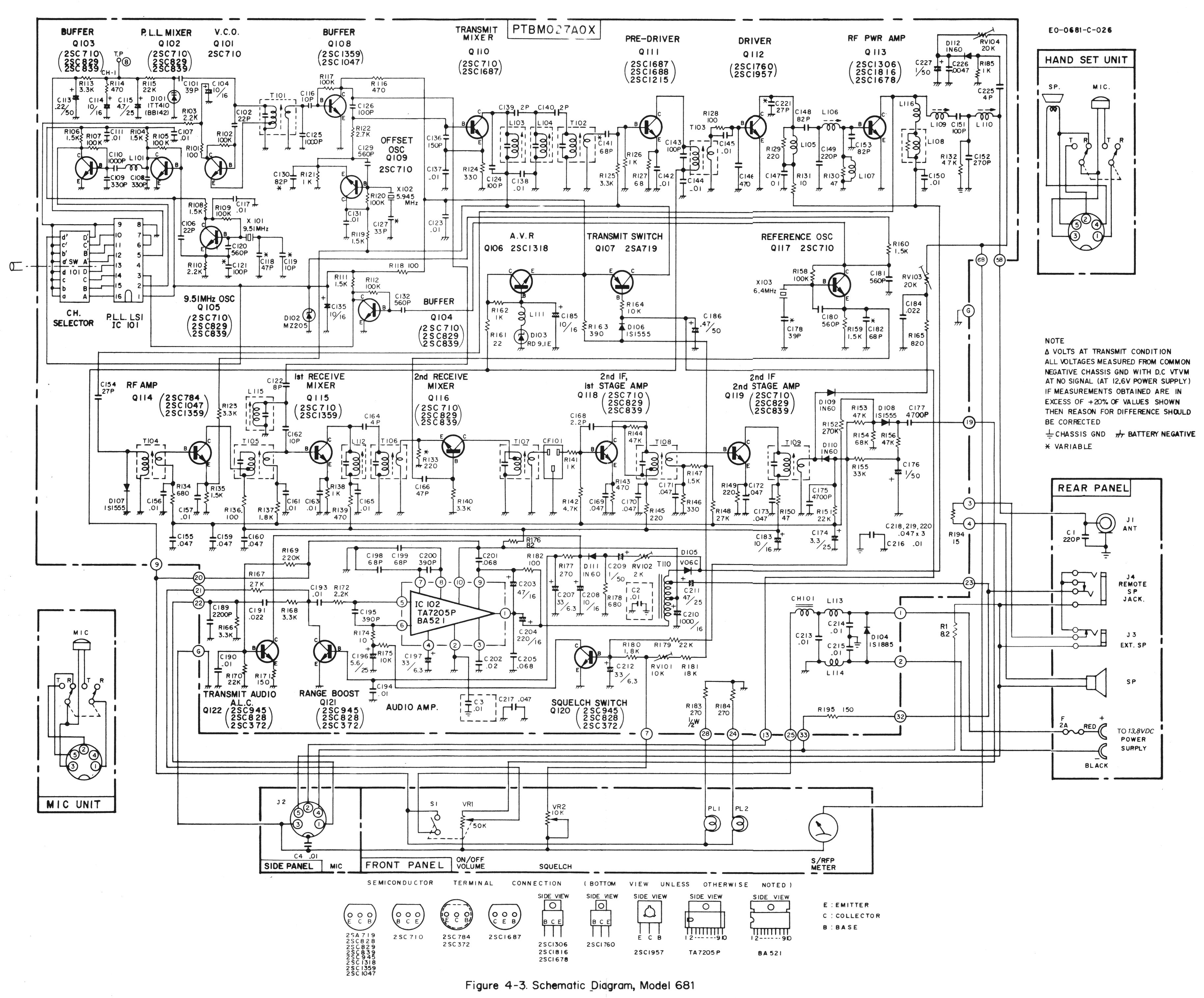

       Main Schematic
       Main Schematic (11x17)
  2A (682)

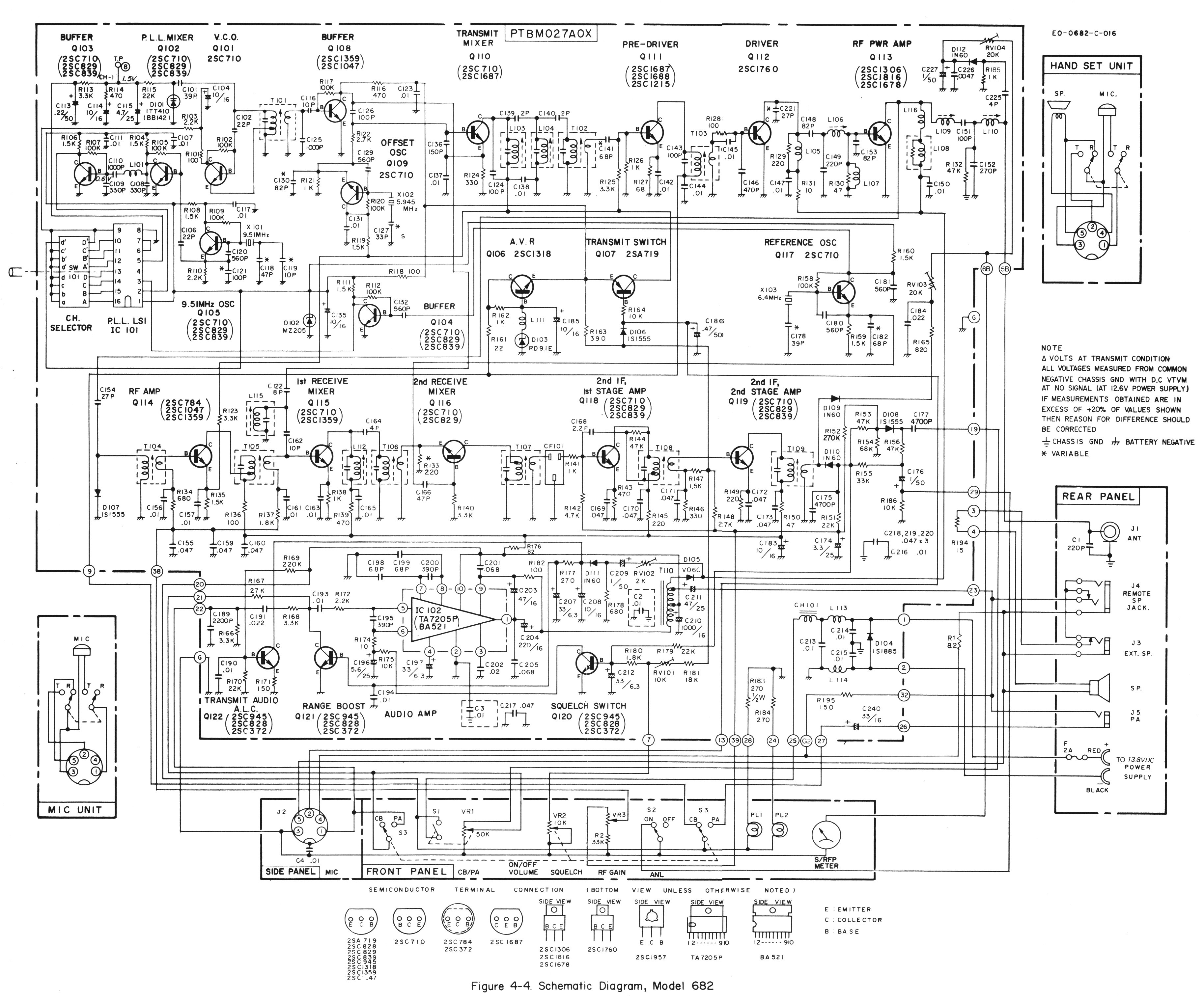

       Main Schematic
       Main Schematic (11x17)

Mic Wiring

Stock

1 - Audio In (mic)
2 - Transmit
3 - Shield  (ground)
4 - Audio Out
5 - Receive

Astatic
1 - White
2 - Red
3 - Shield & Blue
4 - NC
5 - Black
     Yellow NC
