Northpoint NT9HP Frequency Conversion Instructions:

1.
Check out the radio for proper operation before starting.
2.
Remove Power from the radio
3.
Remove the bottom cover. (speaker side)
4.

With radio open, knobs facing you, locate the frequency board in lower left section of chassis.

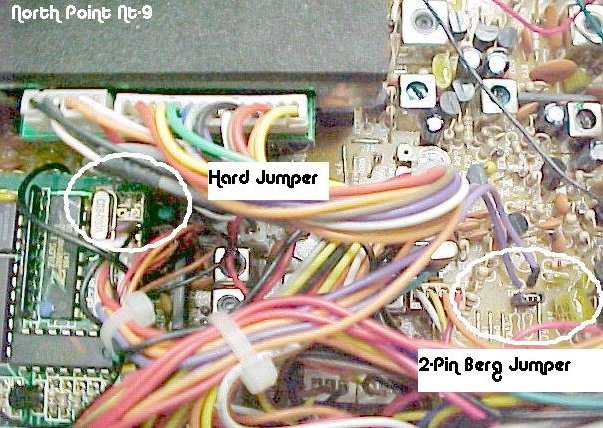

On the top right of the frequency board, there are two soldered jumpers next to the CQ8.0000 crystal.
Open the jumper closest to you.

5.
Locate the two-pin jumper, toward the front center of the radio next to J55. Move the jumper from the single pin & place over both pins. This completes the frequency conversion.
6.
Apply Power and check out the radio for proper operation and do or check alignment if necessary.
You now have a choice of 8 bands.
You now have a choice of 8 bands. To select band, Move BRT/DIM switch to the DIM position. Select N5, or band 5, there are 8 bands. Move the BRT/DIM switch back to brt. This selects the "CB" band CH. 1 - CH. 40.
7.
Replace cover.
Peak & Tune
Connect radio to power meter & dummy load. Turn the RF power control on the front of the radio to low power. Adjust VR-16 to 3 watts. Turn power control on front of radio to high. Adjust VR-13 to 15 watts dead key. Adjust VR12 for low power modulation of 120%, and VR-14 for high power modulation of 120%.
