Ranger
RCI-2950
Documentation Project
CBTricks.com
LCD
PCB (EPT2950217)

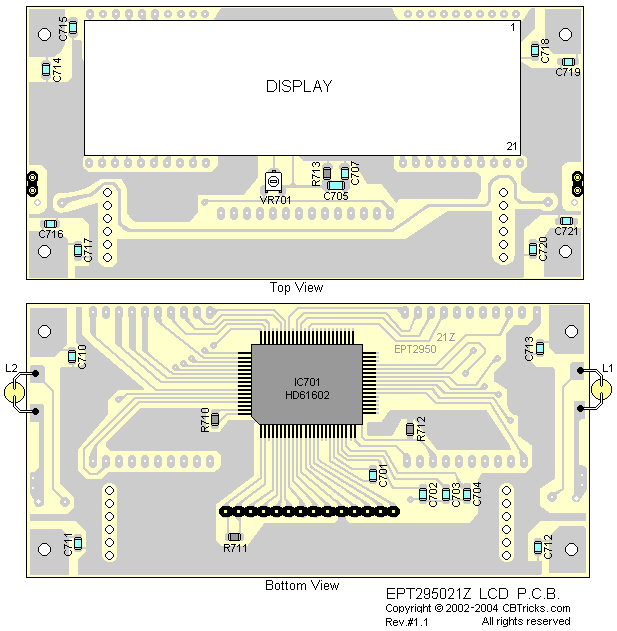

Trace
Layout
Resistors
|
Ref# |
Description |
MFR. Part No. |
|
R710 |
39K .1 W CHIP |
ROY013934Z |
|
R711 |
470K .1W, CHIP |
ROY014744Z |
|
R712 |
680 K .1 W |
ROY016844Z |
Capacitors
|
Ref# |
Description |
MFR. Part No. |
|
C701 |
1uF 16WV M, TANTALUM |
CTY161056Z |
|
C702 |
.33uF 35WV M, TANTALUM |
CTY353346Z |
|
C703 |
.33uF 35WV M, TANTALUM |
CTY353346Z |
|
C704 |
.33uF 35WV M, TANTALUM |
CTY353346Z |
|
C705 |
1uF 16WV M, TANTALUM |
CTY161056Z |
|
C707 |
.01uF, 50WV, Z, Z5V, MONO. |
CK1103AB7U |
|
C710 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C711 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C712 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C713 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C714 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C715 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C716 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C717 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C718 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C719 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C720 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
|
C721 |
.1uF, 25WV, Z, Y5V, MONO. |
CK2104AB7V |
Integrated Circuits
|
Ref# |
Description |
MFR. Part No. |
|
IC701 |
IC HD61602R |
ENH161602R |
Misc.
|
Ref# |
Description |
MFR. Part No. |
|
- |
RESISTOR, 1 M SEM I-FIXED |
RE10500102 |
|
- |
LCD DISPLAY |
EX03N40438 |
|
- |
LAMP, 5V .08A |
EX01 N40080 |
|
- |
IS SOCKET 2P |
EX07N48442 |
|
- |
PCB CONN. SOCK. 14P L= 21.8mm |
EX07N48438 |
