Ranger RCI-2950
Documentation Project

CBTricks.com

EPT295031Z Push Switch PCBEPT295031Z

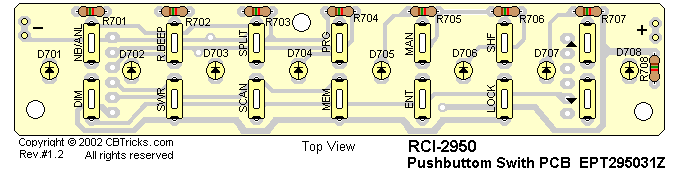

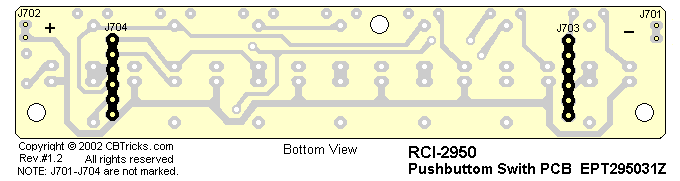

Trace Layout

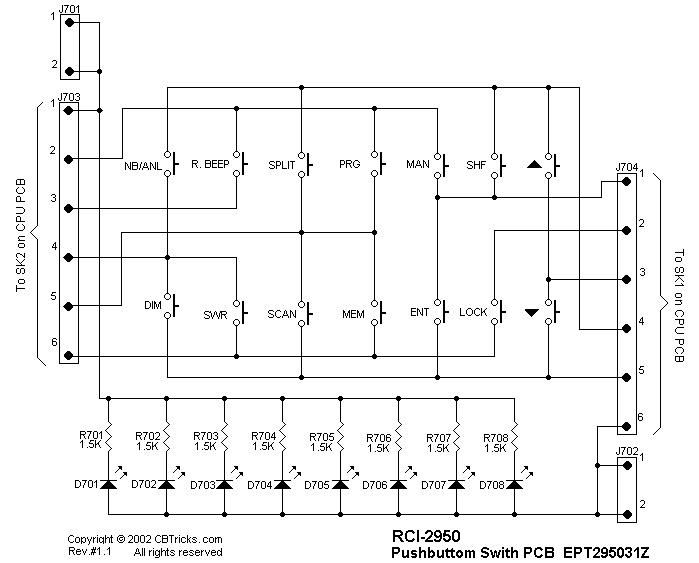

Schematic Diagram



Resistors

Ref#

Description

MFR. Part No.



1.5K 1/16W(P) TYPE

RCP161524Z

Misc.

Ref#

Description

MFR. Part No.



TACT SW

EWPS33042X



IC PIN

EX07N48414



LED YELLOW

EX01N40081



PCB CONN. SOCK. 6P L= 21.8mm

EX07N48441
