Ranger
RCI-2950
Documentation Project
CBTricks.com
CPU

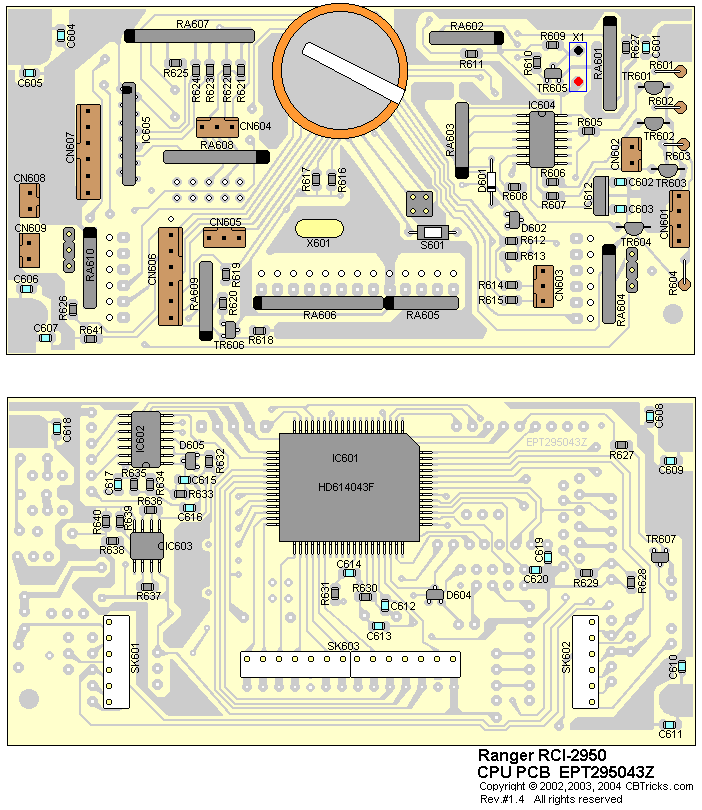

PCB (EPT295043Z)
Trace Layout
Resistors Array
Ref# |
Description |
MFR. Part No. |
RA601 |
RESISTOR ARRAY, 10K/20K 6P |
RCS0670023 |
RA602 |
RESISTOR ARRAY, 47K 5P |
RCS0570009 |
RA603 |
RESISTOR ARRAY, 47K 5P |
RCS0570009 |
RA604 |
RESISTOR ARRAY, 220K 5P |
RCS0570022 |
RA605 |
RESISTOR ARRAY, 47K 5P |
RCS0570009 |
RA606 |
RESISTOR ARRAY, 220K 9P |
RCS0970021 |
RA607 |
RESISTOR ARRAY, 47K 9P |
RCS0970015 |
RA608 |
RESISTOR ARRAY, 47K 7P |
RCS0770020 |
RA609 |
RESISTOR ARRAY, 47K 5P |
RCS0570009 |
RA610 |
RESISTOR ARRAY, 220K 5P |
RCS0570022 |
RA611 |
RESISTOR ARRAY, 47K 5P |
RCS0570009 |
Resistors
Ref# |
Description |
MFR. Part No. |
R601 |
270ohm 1/4W (U) TYPE, CARBON |
RCU142714Z |
R602 |
220ohm 1/4W (U) TYPE, CARBON |
RCU142214Z |
R603 |
180ohm 1/4W (U) TYPE, CARBON |
RCU141814Z |
R604 |
82ohm 1/4W (U) TYPE, CARBON |
RCU148204Z |
R605 |
470ohm .1 W CHIP |
RCY014714Z |
R606 |
470ohm .1W CHIP |
RCY014714Z |
R607 |
470ohm .1W CHIP |
RCY014714Z |
R608 |
470ohm .1 W CHIP |
RCY014714Z |
R609 |
10ohm .1 W, CHIP |
RCY011034Z |
R610 |
1ohm .1 W CHIP |
RCY011024Z |
R611 |
47K, 0.1W CHIP |
RCY014734Z |
R612 |
47K, 0AW CHIP |
RCY014734Z |
R613 |
47K, 0.1W CHIP |
RCY014734Z |
R614 |
47K, 0.1 W CHIP |
RCY014734Z |
R615 |
47K, 0.1W CHIP |
RCY014734Z |
R617 |
47K, 0.1W CHIP |
RCY014734Z |
R618 |
47K, 0.1 W CHIP |
RCY014734Z |
R619 |
47K,.0.1W CHIP |
RCY014734Z |
R620 |
470ohm .1W CHIP |
RCY014714Z |
R621 |
47K 0.1W CHIP |
RCY014734Z |
R622 |
47K 0.1 W CHIP |
RCY014734Z |
R623 |
47K 0.1W CHIP |
RCY014734Z |
R624 |
47K 0.1 W CHIP |
RCY014734Z |
R625 |
47K 0.1W CHIP |
RCY014734Z |
R626 |
4.7K 0.1 W CHIP |
RCY014724Z |
R627 |
47K 0.1W CHIP |
RCY014734Z |
R628 |
47K 0.1 W CHIP |
RCY014734Z |
R629 |
47K 0.1W. CHIP |
RCY014734Z |
R630 |
RESISTOR, 1MEG, 0.1 W, CHIP |
RCY011054Z |
R631 |
10ohm .1 W CHIP |
RCY011034Z |
R632 |
47K 0.1 W CHIP |
RCY014734Z |
R633 |
39K 0.1 W CHIP |
RCY013934Z |
R634 |
RESISTOR, 220K 0.1 W CHIP |
RCY012244Z |
R635 |
RESISTOR, 1MEG 0.1W CHIP |
RCY011054Z |
R636 |
RESISTOR, 100K 0.1W CHIP |
RCY011044Z |
R637 |
RESISTOR, 220K 0.1W CHIP |
RCY012244Z |
R638 |
RESISTOR, 100K 0.1W CHIP |
RCY011044Z |
R639 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R640 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R641 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R642 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R643 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R644 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R645 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R646 |
RESISTOR, 47K O.1W CHIP |
RCY014734Z |
R647 |
RESISTOR, 47K O.1W CHIP |
RCY014734Z |
R648 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R649 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R650 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R651 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
R652 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
R653 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
R654 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
R655 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
R656 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
R657 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
R658 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
R659 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
R660 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
R661 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
8662 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
Capacitors
Ref# |
Description |
MFR. Part No. |
C601 |
.01uF 50WV K Z5U, MONO. |
CK1103AB7U |
C602 |
.1uF 35WV M, TANTALUM |
CTY351046Z |
C603 |
.33uF 35WV M, TANTALUM |
CTY353346Z |
C604 |
.01uF 50WV KZ5U, MONO. |
CK1103A87U |
C605 |
.01uF 50WV KZ5U, MONO. |
CK1103AB7U |
C606 |
.01uF 50WV K Z5U, MONO. |
CK1103AB7U |
C607 |
.01uF 50WV K Z5 U, MONO. |
CK1103AB7U |
C608 |
.01uF 50WV KZ5U, MONO. |
CK1103AB7U |
C609 |
.01uF 50WV K Z5 U, MONO. |
CK1103AB7U |
C610 |
.01uF 50WV K Z5U, MONO. |
CK1103A87U |
C611 |
.01uF 50WV K Z5 U, MONl0. |
CK1103A87U |
C612 |
33PF 50WV J CH, MONO CHIP |
CK1330AB4A |
C613 |
33PF 50WV J CH, MONO CHIP |
CK1330AB4A |
C614 |
.1uF 50WV Z Y5V, MONO. |
CK2104AB7V |
C615 |
.0027uF 50WV Z Y5V, MONO. |
CK1272AB5R |
C616 |
470PF 50WV K SL, MONO. CHIP |
CK1471AB5L |
C617 |
100PF 50WV K SL, MONO CHIP |
CK1101AB5L |
C618 |
.01uF 50WV K Z5U, MONO. |
CK1103AB7U |
Integrated Circuits
Ref# |
Description |
MFR. Part No. |
IC601 |
IC HD4074008F |
ENH174008F |
IC602 |
IC TC4069UBF |
ENTA04069F |
IC603 |
IC M5223FP |
ENMI05223F |
IC604 |
IC TC4069UBF |
ENTA04069F |
IC605 |
IC TA78 |
TZTA00078Z |
IC606 |
IC TA78 |
TZTA00078Z |
IC612 |
IC 7805 |
ENSS07805Z |
Transistors
Ref# |
Description |
MFR. Part No. |
TR601 |
TRANSISTOR 2SC945P |
T2SC00945P |
TR602 |
TRANSISTOR 2SC945P |
T2SC00945P |
TR603 |
TRANSISTOR 2SC945P |
T2SC00945P |
TR604 |
TRANSISTOR 2SC945P |
T2SC00945P |
- |
TRANSISTOR 2SA1162GR |
T2SA01162G |
TR605 |
TRANSISTOR 2SC2712 |
T2SC02712G |
TR606 |
TRANSISTOR 2SC2712 |
T2SC02712G |
TR607 |
TRANSISTOR 2SC2712 |
T2SC02712G |
Diodes
REF# |
DESCRIPTION |
PART# |
D601 |
DIODE 1N5711 |
ED1N05711Z |
D602 |
DIODE 1SS181 |
EDSS00181Z |
D604 |
DIODE 1SS181 |
EDSS00181Z |
D605 |
DIODE 1SS181 |
EDSS00181Z |
Resonator
REF# |
DESCRIPTION |
PART# |
X601 |
RESONATOR, 4MHZ, CERAMIC |
EX14N46510 |
Switch
REF# |
DESCRIPTION |
PART# |
S601 |
TACT SW |
EWPS33042X |
Buzzer
REF# |
DESCRIPTION |
PART# |
- |
BUZZER RKM35-4A |
EX14N46511 |
Battery
REF# |
DESCRIPTION |
PART# |
L1 |
BATTERY LITHIUM, 3V 170maH |
EX08N41405 |
Connectors
REF# |
DESCRIPTION |
PART# |
- |
PCB CONNECTOR SOCKET 6P |
EX07N41266 |
- |
PCB CONNECTOR SOCKET 4P |
EX07N41250 |
- |
PCB CONNECTOR SOCKET 3P |
EX07N41216 |
CN602 |
PCB CONNECTOR SOCKET 2P |
EX07N41226 |
CN608 |
PCB CONNECTOR SOCKET 2P |
EX07N41226 |
CN609 |
PCB CONNECTOR SOCKET 2P |
EX07N41226 |
- |
PCB CONNECTOR SOCKET 3P |
EX07N48244 |
- |
PCB CONNECTOR SOCKET 4P |
EX07N48440 |
- |
PCB CONNECTOR HOUSING 7P |
EX07N48011 |
- |
PCB CONNECTOR HOUSING 6P |
EX07N48010 |
- |
PCB CONNECTOR SOCKET 10P |
EX07N48416 |
- |
SHORT PIN 2P |
EX07N48151 |
