Ranger RCI-2950
Documentation Project

CBTricks.com

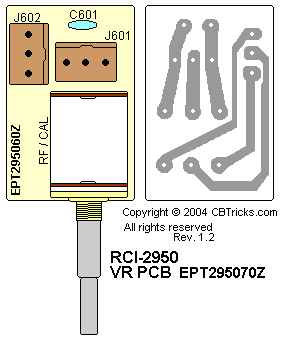

RCI-2950 VR (B) PCB (EPT295060Z)

Capacitors

Ref#

Description

MFR. Part No.

C601

.001 OF 50WV Z SL, CERAMIC

CCO501027L

Potentiometers

Ref#

Description

MFR. Part No.

RF/CAL

VR 1KB-20KB

RV10203456

Connectors

Ref#

Description

MFR. Part No.

J601

PCB CONN. SOCKET 3P

EX07N41216

J602

PCB CONN. SOCKET 3P

EX07N41216
