Ranger RCI-2950
Documentation Project

CBTricks.com

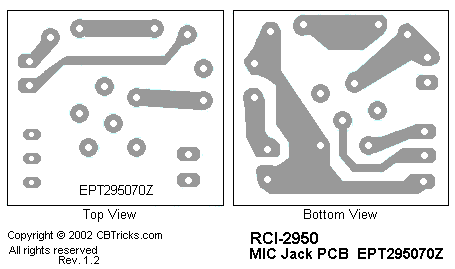

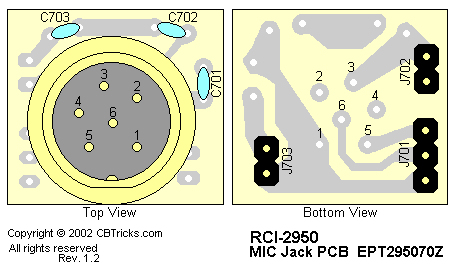

MIC JACK PCB (EPT295070Z)

Capacitors

Ref#

Description

MFR. Part No.

C701

.001uF 50WV Z SL, CERAMIC

CC0501027L

C702

.001uF 50WV Z SL, CERAMIC

CC0501027L

C703

.001uF 50WV Z SL, CERAMIC

CC0501027L

Connectors

Ref#

Description

MFR. Part No.

J701

PCB CONNECTOR SOCKET 3P

EX07N48244

J702

PCB CONNECTOR SOCKET 2P

EX07N48152

J703

PCB CONNECTOR SOCKET 2P

EX07N48152

MIC JACK 6P

EX06N41111


Copyright © 1998, 1999, 2000, 2001, 2002, 2003, 2004 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
